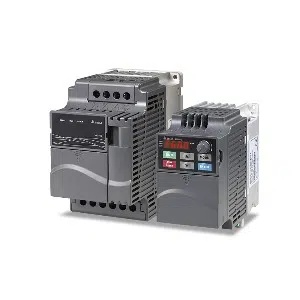

Delta VFD110E43A: VFD for 15 HP Motor
Technical Specifications of VFD for 15 HP Motor Delta VFD110E43A:
- Series: E
- Input Voltage: 460V Three-phase
- Motor Output (kW): 11 kW
- Motor Output (HP): 15 HP
- Output Capacity (kVA): 18.3 kVA
- Cooling Method: Fan Cooling
- Enclosure Rating: IP20.
VFD for 15 HP Motor Delta VFD110E43A Technical Specifications:
| Series Name | E |
| Input Voltage / Frequency | 460V, Three-phase, 380-480V, 50/60Hz |
| Applicable Motor Output ( kW) | 11 kW |
| Applicable Motor Output (HP) | 15 HP |
| Output Current (A) | 24 A |
| Output Capacity (kVA) | 18.3 kVA |
| Cooling Method | Fan Cooling |
| IP Level | IP20 |
| Pollution Degree | 2 |
| Storage/Transportation Temperature | 20’C~60’C |
| Ambient Humidity | Below 90% RH (non-condensing) |
| Version Type | A: Standard drive |
| V/F Pattem | SPWM (Sinusoidal Pulse Width Modulation) Control (V/F or sensorless vector control) |
| Input Frequency Tolerance | ±5% (47-63Hz) |
| Voltage Tolerance | ±10% (342-528V) |
| Net Weight | 4.2 kg |
IndMALL Automation offers the Delta VFD110E43A, a reliable and efficient VFD for 15 HP motors, designed for industrial applications. Part of the E-series, this three-phase VFD operates on an input voltage range of 380V~480V at 50/60 Hz, making it ideal for motors with an output of 11 kW (15 HP).
The drive delivers an output current of 24 A and an output capacity of 18.3 kVA, ensuring optimal performance in heavy-duty environments. Featuring Sinusoidal Pulse Width Modulation (SPWM) control, it supports both V/F and sensorless vector control for precise motor operation. The fan cooling system and IP20 protection enhance durability, while the drive tolerates ±10% voltage and ±5% frequency variations for reliable operation.
With a compact design and a net weight of 4.2 kg, the Delta VFD110E43A is easy to install and maintain. Contact IndMALL Automation for competitive pricing and expert support for your 15 HP motor VFD requirements.
