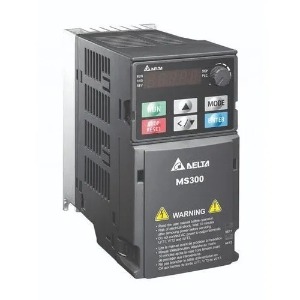

VFD11AMS23ENSAA: Delta MS300 3 Phase 230V VFD
Technical Specifications of VFD11AMS23ENSAA Delta MS300 3 Phase 230V VFD:
| Spec | Value |
|---|---|
| Series Name | MS300 |
| Input Voltage Frequency | 230V, Three-phase AC 200 V ~240 V，50 / 60 Hz |
| Applicable Motor Output ( kW) | 2.2 kW |
| Applicable Motor Output (HP) | 3 HP |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
Delta MS300 3 Phase 230V VFD11AMS23ENSAA Technical Specifications:
| Specification | Value |
|---|---|
| Series Name | MS300 |
| Input Voltage / Frequency | 230V, Three-phase AC 200 V ~240 V，50 / 60 Hz |
| Applicable Motor Output ( kW) | 2.2 kW |
| Applicable Motor Output (HP) | 3 HP |
| Heavy Duty Rated Output Current (A) | 11 A |
| Normal Duty Rated Output Current (A) | 12.5 A |
| Cooling Method | Fan cooling |
| IP Level | IP40 (Anti-dust) |
| EMC Filter | None EMC Filter |
| Safe Torque Off (STO) | Integrated STO |
| Model Type | Standard Model |
| Braking Chopper | Built-in Braking Chopper |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
| MODBUS COM | - |
| Control Methods | V/F, SVC, FOC Sensorless |
| Size: W × H (mm) | 87×157 |
| Size: D (mm) | 152 |
| Net Weight | 3.4 kg |
IndMALL Automation Offers Delta MS300 3 Phase 230V VFD, VFD11AMS23ENSAA with exclusive offers. Component Specifications of VFD11AMS23ENSAA features Standard Model, Integrated STO, None EMC Filter & Built-in Braking Chopper. It rounds off its features with 2.2 kW, 3 HP & 11 A. Don't Miss Out on a Quote for your requirement of Delta MS300 3 Phase 230V VFD. Our competitive edge: better pricing and support than other Suppliers.
