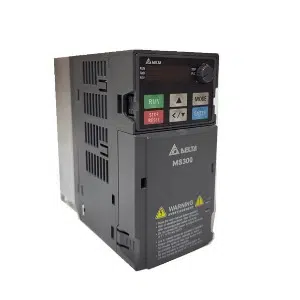

VFD12AMS53ANSAA: Delta Inverter Drive 10HP
Technical Specifications of VFD12AMS53ANSAA Delta Inverter Drive 10HP:
| Spec | Value |
|---|---|
| Series Name | MS300 |
| Input Voltage Frequency | 575V, Three-phase AC 500 V ~ 600 V (-15% ~ +10 %), 50/60 Hz |
| Applicable Motor Output ( kW) | 7.5 kW |
| Applicable Motor Output (HP) | 10 HP |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
Delta Inverter Drive 10HP VFD12AMS53ANSAA Technical Specifications:
| Specification | Value |
|---|---|
| Series Name | MS300 |
| Input Voltage / Frequency | 575V, Three-phase AC 500 V ~ 600 V (-15% ~ +10 %), 50/60 Hz |
| Applicable Motor Output ( kW) | 7.5 kW |
| Applicable Motor Output (HP) | 10 HP |
| Heavy Duty Rated Output Current (A) | 12.2 A |
| Normal Duty Rated Output Current (A) | 15 A |
| Cooling Method | Fan cooling |
| IP Level | IP20 |
| EMC Filter | None EMC Filter |
| Safe Torque Off (STO) | Integrated STO |
| Model Type | Standard Model |
| Braking Chopper | Built-in Braking Chopper |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
| MODBUS COM | - |
| Control Methods | V/F, SVC, FOC Sensorless |
| Size: W × H (mm) | 109×207 |
| Size: D (mm) | 154 |
| Net Weight | -- |
Obtain a Quote for Delta Inverter Drive 10HP, VFD12AMS53ANSAA at economical prices. Specifications Overview for VFD12AMS53ANSAA reveals Standard Model, Integrated STO, None EMC Filter & Built-in Braking Chopper. It also includes 7.5 kW, 10 HP & 12.2 A. Take the First Step with a Quote for your requirement of Delta Inverter Drive 10HP. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
