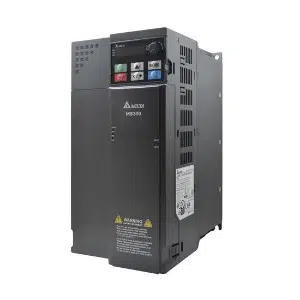

VFD13AMS43ANSHA: Delta Built-in EMC filter 5.5kW Frequency Drive
Technical Specifications of VFD13AMS43ANSHA Delta Built-in EMC filter 5.5kW Frequency Drive:
| Spec | Value |
|---|---|
| Series Name | MS300 |
| Input Voltage Frequency | 460V, Three-phase AC 380 V ~480 V，50 / 60 Hz |
| Applicable Motor Output ( kW) | 5.5 kW |
| Applicable Motor Output (HP) | 7.5 HP |
| Output Frequency | 0.00 ~ 1500.0Hz (±0.1%) |
Delta Built-in EMC filter 5.5kW Frequency Drive VFD13AMS43ANSHA Technical Specifications:
| Specification | Value |
|---|---|
| Series Name | MS300 |
| Input Voltage / Frequency | 460V, Three-phase AC 380 V ~480 V，50 / 60 Hz |
| Applicable Motor Output ( kW) | 5.5 kW |
| Applicable Motor Output (HP) | 7.5 HP |
| Heavy Duty Rated Output Current (A) | 13 A |
| Normal Duty Rated Output Current (A) | 15.7 A |
| Cooling Method | Fan cooling |
| IP Level | IP20 |
| EMC Filter | None EMC Filter |
| Safe Torque Off (STO) | Integrated STO |
| Model Type | High Speed Model |
| Braking Chopper | Built-in Braking Chopper |
| Output Frequency | 0.00 ~ 1500.0Hz (±0.1%) |
| MODBUS COM | - |
| Control Methods | V/F, SVC, FOC Sensorless |
| Size: W × H (mm) | 109×207 |
| Size: D (mm) | 154 |
| Net Weight | 4.25 kg |
Get A Quote for Delta Built-in EMC filter 5.5kW Frequency Drive, VFD13AMS43ANSHA at the best price. Here are the brief Technical Specifications of VFD13AMS43ANSHA: High Speed Model, Integrated STO, None EMC Filter & Built-in Braking Chopper. And it offers 5.5 kW, 7.5 HP & 13 A. It's Time to get a Quote for your requirement of Delta Built-in EMC filter 5.5kW Frequency Drive. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
