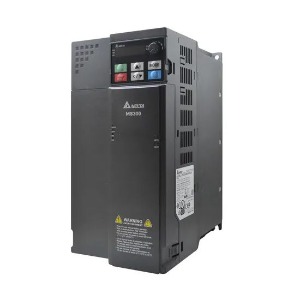

VFD13AMS43ENSHA: Delta 460V 3-phase 13 Amp
Technical Specifications of VFD13AMS43ENSHA Delta 460V 3-phase 13 Amp:
| Spec | Value |
|---|---|
| Series Name | MS300 |
| Input Voltage Frequency | 460V, Three-phase AC 380 V ~480 V，50 / 60 Hz |
| Applicable Motor Output ( kW) | 5.5 kW |
| Applicable Motor Output (HP) | 7.5 HP |
| Output Frequency | 0.00 ~ 1500.0Hz (±0.1%) |
Delta 460V 3-phase 13 Amp VFD13AMS43ENSHA Technical Specifications:
| Specification | Value |
|---|---|
| Series Name | MS300 |
| Input Voltage / Frequency | 460V, Three-phase AC 380 V ~480 V，50 / 60 Hz |
| Applicable Motor Output ( kW) | 5.5 kW |
| Applicable Motor Output (HP) | 7.5 HP |
| Heavy Duty Rated Output Current (A) | 13 A |
| Normal Duty Rated Output Current (A) | 15.7 A |
| Cooling Method | Fan cooling |
| IP Level | IP40 (Anti-dust) |
| EMC Filter | None EMC Filter |
| Safe Torque Off (STO) | Integrated STO |
| Model Type | High Speed Model |
| Braking Chopper | Built-in Braking Chopper |
| Output Frequency | 0.00 ~ 1500.0Hz (±0.1%) |
| MODBUS COM | - |
| Control Methods | V/F, SVC, FOC Sensorless |
| Size: W × H (mm) | 109×207 |
| Size: D (mm) | 154 |
| Net Weight | 4.25 kg |
Call us for Delta 460V 3-phase 13 Amp, VFD13AMS43ENSHA at competitive rates. Technical Attributes of VFD13AMS43ENSHA are High Speed Model, Integrated STO, None EMC Filter & Built-in Braking Chopper. And It Delivers 5.5 kW, 7.5 HP & 13 A. Unlock Exclusive Pricing with a Quote for your requirement of Delta 460V 3-phase 13 Amp. Trust in our ability to provide more advantageous pricing and dedicated support beyond other Dealers.
