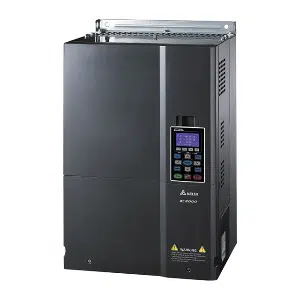

VFD150C43E: Delta 15kW Superior Capacity Drive
Technical Specifications of Delta 15kW Superior Capacity Drive VFD150C43E:
| Spec | Value |
|---|---|
| Input Voltage / Frequency | 3 - phase AC 380V ~ 480V (-15%~+10% ), 50/60Hz |
| Output Capacity (kVA) Normal Duty | 25 kVA |
| Output Current (A) Normal Duty | 32 A |
| Applicable Motor Output (kW) Normal Duty | 15 kW |
| Applicable Motor Output (HP) Normal Duty | 20 HP |
Delta 15kW Superior Capacity Drive VFD150C43E Technical Specifications:
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 3 - phase AC 380V ~ 480V (-15%~+10% ), 50/60Hz |
| Output Capacity (kVA) Normal Duty | 25 kVA |
| Output Current (A) Normal Duty | 32 A |
| Applicable Motor Output (kW) Normal Duty | 15 kW |
| Applicable Motor Output (HP) Normal Duty | 20 HP |
| Cooling Method | Fan cooling |
| Efficiency (%) | 97.8 |
| IP Level | IP20 |
| NEMA Protection Level | No NEMA Protection Level |
| Storage/Transportation Temperature | -25 ~ 70 |
| Braking Chopper | Built-IN Braking Chopper |
| Control Method | Pulse Width Modulated (PWM) |
| Installation Type | Built-in conduit box |
| V/F Curve | 4-point adjustable V/F curve and square curve |
| Input Frequency Tolerance | 47 ~ 63Hz |
| Voltage Tolerance | 323 ~ 528 VAC |
| Drive Weight (Kg) | 5.4 ± 1 kg |
Send Us an Email for Delta 15kW Superior Capacity Drive, VFD150C43E with the special pricing. Engineering Specifications of VFD150C43E detail No NEMA Protection Level, Built-IN Braking Chopper, Pulse Width Modulated (PWM) & Built-in conduit box. Moreover, it features 15 kW, 25 kVA & 32 A. It's Time to get a Quote for your requirement of Delta 15kW Superior Capacity Drive. We excel in offering more cost-effective and supportive solutions than other Dealers.
