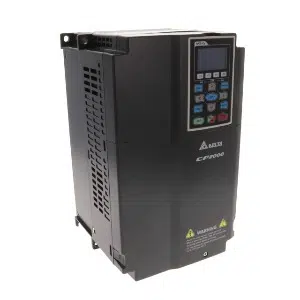

VFD150CP43B-21: Delta 15kW Robust VFD
Technical Specification of Delta 15kW Robust VFD VFD150CP43B-21:
| Spec | Value |
|---|---|
| Input Voltage / Frequency | 460V, Three-Phase AC 380V~480V(-15%-+10%),50/60Hz |
| Output Capacity (kVA) Normal Duty | 32 A |
| Applicable Motor Output (kW) Normal Duty | 15 kW |
| Applicable Motor Output (HP) Normal Duty | 20 HP |
Delta 15kW Robust VFD VFD150CP43B-21 Technical Specifications:
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 460V, Three-Phase AC 380V~480V(-15%-+10%),50/60Hz |
| Output Capacity (kVA) Normal Duty | 25 kVA |
| Output Current (A) Normal Duty | 32 A |
| Applicable Motor Output (kW) Normal Duty | 15 kW |
| Applicable Motor Output (HP) Normal Duty | 20 HP |
| Cooling Method | Fan Cooling |
| Efficiency (%) | 96.5 |
| IP Level | IP20 |
| NEMA Protection Level | NEMA 1 |
| Storage/Transportation Temperature | -25ºC ~ +70ºC |
| Braking Chopper | Built-In Braking Chopper |
| Control Method | Pulse Width Modulation (PWM) |
| Installation Type | Wall-Mounting |
| V/F Curve | 4 point adjustable V / F curve and square curve |
| Input Frequency Tolerance | 47~63Hz |
| Voltage Tolerance | 232~528Vac |
Call us for Delta 15kW Robust VFD, VFD150CP43B-21 at competitive rates. Technical Attributes of VFD150CP43B-21 are NEMA 1, Built-In Braking Chopper, Pulse Width Modulation (PWM) & Wall-Mounting. And It Delivers 25 kVA, 32 A & 15 kW. Unlock Exclusive Pricing with a Quote for your requirement of Delta 15kW Robust VFD. Trust in our ability to provide more advantageous pricing and dedicated support beyond other Dealers.
