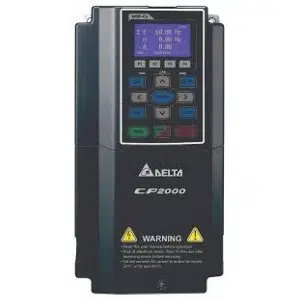

VFD1600CP43A-21: Delta VFD 160kW
Technical Specification of Delta VFD 160kW VFD1600CP43A-21:
| Spec | Value |
|---|---|
| Input Voltage / Frequency | 460V, Three-Phase AC 380V~480V(-15%-+10%),50/60Hz |
| Output Capacity (kVA) Normal Duty | 310 A |
| Applicable Motor Output (kW) Normal Duty | 160 kW |
| Applicable Motor Output (HP) Normal Duty | 215 HP |
Delta VFD 160kW VFD1600CP43A-21 Technical Specifications:
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 460V, Three-Phase AC 380V~480V(-15%-+10%),50/60Hz |
| Output Capacity (kVA) Normal Duty | 247 kVA |
| Output Current (A) Normal Duty | 310 A |
| Applicable Motor Output (kW) Normal Duty | 160 kW |
| Applicable Motor Output (HP) Normal Duty | 215 HP |
| Cooling Method | Fan Cooling |
| Efficiency (%) | 97 |
| IP Level | IP20 |
| NEMA Protection Level | NEMA 1 |
| Storage/Transportation Temperature | -25ºC ~ +70ºC |
| Braking Chopper | Optional Braking Chopper |
| Control Method | Pulse Width Modulation (PWM) |
| Installation Type | Wall-Mounting |
| V/F Curve | 4 point adjustable V / F curve and square curve |
| Input Frequency Tolerance | 47~63Hz |
| Voltage Tolerance | 232~528Vac |
Call us for Delta VFD 160kW, VFD1600CP43A-21 at the best rates. Technical Attributes of VFD1600CP43A-21 are Optional Braking Chopper, Pulse Width Modulation (PWM), Wall-Mounting & NEMA 1. And It Delivers 247 kVA, 310 A & 160 kW.Unlock Exclusive Pricing with a Quote for your requirement of Delta VFD 160kW. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
