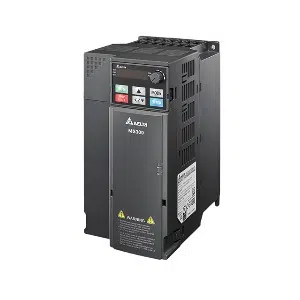

VFD17AMS23ENSHA: Delta UL Certified 5HP Inverters
Technical Specifications of VFD17AMS23ENSHA Delta UL Certified 5HP Inverters:
| Spec | Value |
|---|---|
| Series Name | MS300 |
| Input Voltage Frequency | 230V, Three-phase AC 200 V ~240 V，50 / 60 Hz |
| Applicable Motor Output ( kW) | 3.7 kW |
| Applicable Motor Output (HP) | 5 HP |
| Output Frequency | 0.00 ~ 1500.0Hz (±0.1%) |
Delta UL Certified 5HP Inverters VFD17AMS23ENSHA Technical Specifications:
| Specification | Value |
|---|---|
| Series Name | MS300 |
| Input Voltage / Frequency | 230V, Three-phase AC 200 V ~240 V，50 / 60 Hz |
| Applicable Motor Output ( kW) | 3.7 kW |
| Applicable Motor Output (HP) | 5 HP |
| Heavy Duty Rated Output Current (A) | 17 A |
| Normal Duty Rated Output Current (A) | 19.5 A |
| Cooling Method | Fan cooling |
| IP Level | IP40 (Anti-dust) |
| EMC Filter | None EMC Filter |
| Safe Torque Off (STO) | Integrated STO |
| Model Type | High Speed Model |
| Braking Chopper | Built-in Braking Chopper |
| Output Frequency | 0.00 ~ 1500.0Hz (±0.1%) |
| MODBUS COM | - |
| Control Methods | V/F, SVC, FOC Sensorless |
| Size: W × H (mm) | 87×157 |
| Size: D (mm) | 152 |
| Net Weight | 3.5 kg |
Give Us a Call for Delta UL Certified 5HP Inverters, VFD17AMS23ENSHA at the lowest pricing. In-depth Technical Analysis of VFD17AMS23ENSHA includes High Speed Model, Integrated STO, None EMC Filter & Built-in Braking Chopper. It functionality Includes 3.7 kW, 5 HP & 17 A. Elevate Your Project with a Quote for your requirement of Delta UL Certified 5HP Inverters. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
