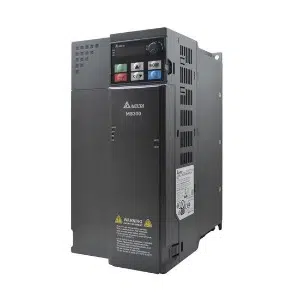

VFD17AMS43ANSHA: Delta 460V 3-Phase Inverters
Technical Specifications of VFD17AMS43ANSHA Delta 460V 3-Phase Inverters:
| Spec | Value |
|---|---|
| Series Name | MS300 |
| Input Voltage Frequency | 460V, Three-phase AC 380 V ~480 V，50 / 60 Hz |
| Applicable Motor Output ( kW) | 7.5 kW |
| Applicable Motor Output (HP) | 10 HP |
| Output Frequency | 0.00 ~ 1500.0Hz (±0.1%) |
Delta 460V 3-Phase Inverters VFD17AMS43ANSHA Technical Specifications:
| Specification | Value |
|---|---|
| Series Name | MS300 |
| Input Voltage / Frequency | 460V, Three-phase AC 380 V ~480 V，50 / 60 Hz |
| Applicable Motor Output ( kW) | 7.5 kW |
| Applicable Motor Output (HP) | 10 HP |
| Heavy Duty Rated Output Current (A) | 17 A |
| Normal Duty Rated Output Current (A) | 20.5 A |
| Cooling Method | Fan cooling |
| IP Level | IP20 |
| EMC Filter | None EMC Filter |
| Safe Torque Off (STO) | Integrated STO |
| Model Type | High Speed Model |
| Braking Chopper | Built-in Braking Chopper |
| Output Frequency | 0.00 ~ 1500.0Hz (±0.1%) |
| MODBUS COM | - |
| Control Methods | V/F, SVC, FOC Sensorless |
| Size: W × H (mm) | 109×207 |
| Size: D (mm) | 154 |
| Net Weight | 4.25 kg |
Mail Us for your needs in Delta 460V 3-Phase Inverters, VFD17AMS43ANSHA with budget-friendly prices. The Main Technical Parameters of VFD17AMS43ANSHA include High Speed Model, Integrated STO, None EMC Filter & Built-in Braking Chopper. Additionally, it provides 7.5 kW, 10 HP & 17 A. Customize Your Experience with a Quote for your requirement of Delta 460V 3-Phase Inverters. Experience the difference with our competitive pricing and superior support over other Suppliers.
