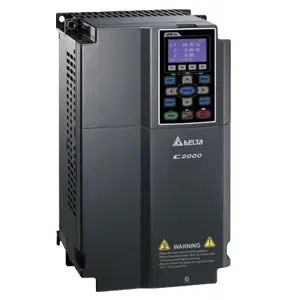

VFD1850C43A: Delta VFD 250HP
Technical Specifications of Delta VFD 250HP VFD1850C43A:
| Spec | Value |
|---|---|
| Input Voltage / Frequency | 3 - phase AC 380V ~ 480V (-15%~+10% ), 50/60Hz |
| Output Capacity (kVA) Normal Duty | 295 kVA |
| Output Current (A) Normal Duty | 370 A |
| Applicable Motor Output (kW) Normal Duty | 185 kW |
| Applicable Motor Output (HP) Normal Duty | 250 HP |
Delta VFD 250HP VFD1850C43A Technical Specifications:
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 3 - phase AC 380V ~ 480V (-15%~+10% ), 50/60Hz |
| Output Capacity (kVA) Normal Duty | 295 kVA |
| Output Current (A) Normal Duty | 370 A |
| Applicable Motor Output (kW) Normal Duty | 185 kW |
| Applicable Motor Output (HP) Normal Duty | 250 HP |
| Cooling Method | Fan Cooling |
| Efficiency (%) | 98.2 |
| IP Level | IP20 |
| NEMA Protection Level | No NEMA Protection Level |
| Storage/Transportation Temperature | -25 ~ 70 |
| Braking Chopper | Optional Braking Chopper |
| Control Method | Pulse Width Modulated (PWM) |
| Installation Type | Wall mount |
| V/F Curve | 4-point adjustable V/F curve and square curve |
| Input Frequency Tolerance | 47 ~ 63Hz |
| Voltage Tolerance | 323 ~ 528 VAC |
| Drive Weight (Kg) | 134±4 kg |
Send Your Inquiry for Delta VFD 250HP, VFD1850C43A with cost-effective solutions. Essential Technical Specs of VFD1850C43A cover No NEMA Protection Level, Optional Braking Chopper, Pulse Width Modulated (PWM) & Wall mount. It also delivers 185 kW, 295 kVA & 370 A. Capture the Best Deal with a Quote for your requirement of Delta VFD 250HP. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
