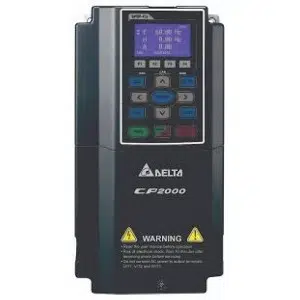

VFD1850CP43B-21: Delta 185kW Industrial-Grade Drive
Technical Specification of Delta 185kW Industrial-Grade Drive VFD1850CP43B-21:
| Spec | Value |
|---|---|
| Input Voltage / Frequency | 460V, Three-Phase AC 380V~480V(-15%-+10%),50/60Hz |
| Output Capacity (kVA) Normal Duty | 370 A |
| Applicable Motor Output (kW) Normal Duty | 185 kW |
| Applicable Motor Output (HP) Normal Duty | 250 HP |
Delta 185kW Industrial-Grade Drive VFD1850CP43B-21 Technical Specifications:
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 460V, Three-Phase AC 380V~480V(-15%-+10%),50/60Hz |
| Output Capacity (kVA) Normal Duty | 295 kVA |
| Output Current (A) Normal Duty | 370 A |
| Applicable Motor Output (kW) Normal Duty | 185 kW |
| Applicable Motor Output (HP) Normal Duty | 250 HP |
| Cooling Method | Fan Cooling |
| Efficiency (%) | 97 |
| IP Level | IP20 |
| NEMA Protection Level | NEMA 1 |
| Storage/Transportation Temperature | -25ºC ~ +70ºC |
| Braking Chopper | Optional Braking Chopper |
| Control Method | Pulse Width Modulation (PWM) |
| Installation Type | Wall-Mounting |
| V/F Curve | 4 point adjustable V / F curve and square curve |
| Input Frequency Tolerance | 47~63Hz |
| Voltage Tolerance | 232~528Vac |
Get A Quote for Delta 185kW Industrial-Grade Drive, VFD1850CP43B-21 at the best price. Here are the brief Technical Specifications of VFD1850CP43B-21: Optional Braking Chopper, Pulse Width Modulation (PWM), Wall-Mounting & NEMA 1. And it offers 295 kVA, 370 A & 185 kW. It's Time to get a Quote for your requirement of Delta 185kW Industrial-Grade Drive. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
