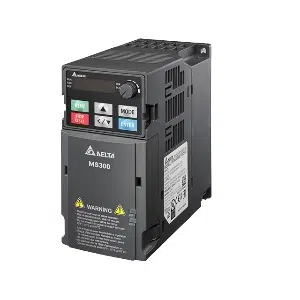

VFD1A5ME43AFNAA: Delta 1/2 HP 460V 3-phase Drive
Technical Specifications of VFD1A5ME43AFNAA Delta 1/2 HP 460V 3-phase Drive:
| Spec | Value |
|---|---|
| Series Name | ME300 |
| Input Voltage Frequency | 460V, Three-phase AC, 380V~480V (-15% ~ + 10%), 50 / 60Hz |
| Applicable Motor Output ( kW) | 0.4 |
| Applicable Motor Output (HP) | 1/2 |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
Delta 1/2 HP 460V 3-phase Drive VFD1A5ME43AFNAA Technical specifications:
| Specification | Value |
|---|---|
| Series Name | ME300 |
| Input Voltage / Frequency | 460V, Three-phase AC, 380V~480V (-15% ~ + 10%), 50 / 60Hz |
| Applicable Motor Output ( kW) | 0.4 |
| Applicable Motor Output (HP) | 1/2 |
| Heavy Duty Rated Output Current (A) | 1.5 |
| Normal Duty Rated Output Current (A) | 1.8 |
| Cooling Method | Fan cooling |
| IP Level | IP20 |
| EMC Filter | Built-In |
| Safe Torque Off (STO) | None |
| Model Type | Standard model |
| Braking Chopper | Built-in |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
| MODBUS COM | Built-in |
| Control Methods | V/F, SVC |
| Size: W × H (mm) | 72 × 142 |
| Size: D (mm) | 143 |
| Net Weight | 0.6 |
IndMALL Offers the Delta VFD1A5ME43AFNAA, a top-notch ME300 series drive. This powerful device operates at 460V with three-phase AC, delivering a motor output of 0.4 kW (1/2 HP) and an output current of 1.5 A. It comes equipped with built-in EMC filters and a braking chopper, making it a reliable choice for various applications. The Delta 1/2 HP 460V 3-phase Drive in the standard model boasts both V/F and SVC control methods, ensuring optimal performance and protection with its IP20 rating, all while benefiting from efficient fan cooling.
