VFD1A6ME21AFNAA: Delta 1/4 HP VFD
Technical Specifications of VFD1A6ME21AFNAA Delta 1/4 HP VFD:
| Spec | Value |
|---|---|
| Series Name | ME300 |
| Input Voltage Frequency | 230V, Single-phase AC, 200V~240V (-15% ~ + 10%), 50 / 60Hz |
| Applicable Motor Output ( kW) | 0.2 |
| Applicable Motor Output (HP) | 1/4 |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
Delta 1/4 HP VFD1A6ME21AFNAA Technical specifications:
| Specification | Value |
|---|---|
| Series Name | ME300 |
| Input Voltage / Frequency | 230V, Single-phase AC, 200V~240V (-15% ~ + 10%), 50 / 60Hz |
| Applicable Motor Output ( kW) | 0.2 |
| Applicable Motor Output (HP) | 1/4 |
| Heavy Duty Rated Output Current (A) | 1.6 |
| Normal Duty Rated Output Current (A) | 1.8 |
| Cooling Method | Natural air cooling |
| IP Level | IP20 |
| EMC Filter | Built-In |
| Safe Torque Off (STO) | None |
| Model Type | Standard model |
| Braking Chopper | Built-in |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
| MODBUS COM | Built-in |
| Control Methods | V/F, SVC |
| Size: W × H (mm) | 72 x 142 |
| Size: D (mm) | 143 |
| Net Weight | 0.4 |

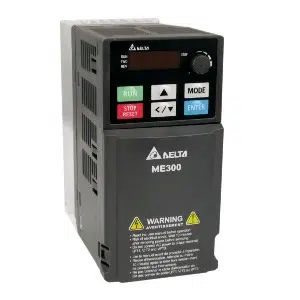

The Delta 1/4 HP VFD, model VFD1A6ME21AFNAA, is a standard model offering a motor output of 0.2 kW and operating on a 230V single-phase AC input. IndMALL offers this Variable Frequency Drive (VFD) featuring built-in EMC filter and braking chopper, with natural air cooling and IP20 protection. It supports control methods such as V/F and SVC, ensuring efficient operation with an output current of 1.6 A. This series, ME300, is designed to meet diverse industrial needs, enhancing performance with its reliable features.
