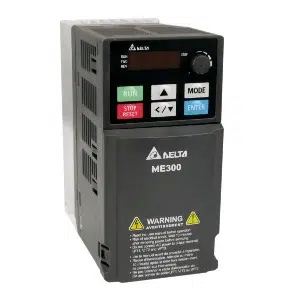

VFD1A6ME21AFSAA: Delta Built-in EMC Filter Drive
Technical Specifications of VFD1A6ME21AFSAA Delta Built-in EMC Filter Drive:
| Spec | Value |
|---|---|
| Series Name | ME300 |
| Input Voltage Frequency | 230V, Single-phase AC, 200V~240V (-15% ~ + 10%), 50 / 60Hz |
| Applicable Motor Output ( kW) | 0.2 |
| Applicable Motor Output (HP) | 1/4 |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
Delta Built-in EMC Filter Drive VFD1A6ME21AFSAA Technical specifications:
| Specification | Value |
|---|---|
| Series Name | ME300 |
| Input Voltage / Frequency | 230V, Single-phase AC, 200V~240V (-15% ~ + 10%), 50 / 60Hz |
| Applicable Motor Output ( kW) | 0.2 |
| Applicable Motor Output (HP) | 1/4 |
| Heavy Duty Rated Output Current (A) | 1.6 |
| Normal Duty Rated Output Current (A) | 1.8 |
| Cooling Method | Natural air cooling |
| IP Level | IP20 |
| EMC Filter | Built-In |
| Safe Torque Off (STO) | STO Model |
| Model Type | Standard model |
| Braking Chopper | Built-in |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
| MODBUS COM | Built-in |
| Control Methods | V/F, SVC |
| Size: W × H (mm) | 72 x 142 |
| Size: D (mm) | 143 |
| Net Weight | 0.4 |
The Delta Built-in EMC Filter Drive, Model VFD1A6ME21AFSAA from the ME300 Series, is designed to seamlessly integrate into your system with a single-phase AC input voltage of 230V. It boasts a motor output of 0.2 kW (1/4 HP) and an output current of 1.6 A, ensuring efficient operation with natural air cooling and a built-in braking chopper for enhanced performance. With its standard model type featuring V/F and SVC control methods, along with an IP20 protection rating, IndMALL offers this advanced solution for optimizing your motor control applications.
