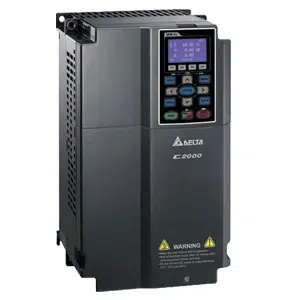

VFD2000C63B-00: Delta 2000kW Ultimate Solution
Technical Specifications of Delta 2000kW Ultimate Solution VFD2000C63B-00:
| Spec | Value |
|---|---|
| Input Voltage / Frequency | 3-Phase 525VAC ~ 690VAC ( -15% ~ +10%), 50 / 60Hz |
| Output Capacity (kVA) Normal Duty | 215 kVA |
| Output Current (A) Normal Duty | 180 A |
| Applicable Motor Output (kW) Normal Duty | 160 kW |
| Applicable Motor Output (HP) Normal Duty | 215 HP |
Delta 2000kW Ultimate Solution VFD2000C63B-00 Technical Specifications:
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 3-Phase 525VAC ~ 690VAC ( -15% ~ +10%), 50 / 60Hz |
| Output Capacity (kVA) Normal Duty | 215 kVA |
| Output Current (A) Normal Duty | 180 A |
| Applicable Motor Output (kW) Normal Duty | 160 kW |
| Applicable Motor Output (HP) Normal Duty | 215 HP |
| Cooling Method | Fan Cooling |
| Efficiency (%) | 97 |
| IP Level | IP00 |
| NEMA Protection Level | UL Open Type |
| Storage/Transportation Temperature | -25 ~ 70 |
| Braking Chopper | Optional Braking Chopper |
| Control Method | Pulse Width Modulated (PWM) |
| Installation Type | Wall mount with 690V rated current |
| V/F Curve | 4-point adjustable V/F curve and square curve |
| Input Frequency Tolerance | 47 ~ 63Hz |
| Voltage Tolerance | 446 ~ 759VAC |
| Drive Weight (Kg) | 88±1.5 kg |
Mail Us for your needs in Delta 2000kW Ultimate Solution, VFD2000C63B-00 with budget-friendly prices. The Main Technical Parameters of VFD2000C63B-00 include UL Open Type, Optional Braking Chopper, Pulse Width Modulated (PWM) & Wall mount with 690V rated current. Additionally, it provides 215 kVA, 180 A & 160 kW. Customize Your Experience with a Quote for your requirement of Delta 2000kW Ultimate Solution. Experience the difference with our competitive pricing and superior support over other Suppliers.
