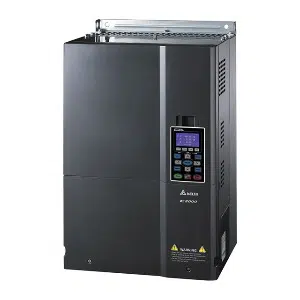

VFD220C43E: Delta 22kW Mega Capacity Drive
Technical Specifications of Delta 22kW Mega Capacity Drive VFD220C43E:
| Spec | Value |
|---|---|
| Input Voltage / Frequency | 3 - phase AC 380V ~ 480V (-15%~+10% ), 50/60Hz |
| Output Capacity (kVA) Normal Duty | 36 kVA |
| Output Current (A) Normal Duty | 45 A |
| Applicable Motor Output (kW) Normal Duty | 22 kW |
| Applicable Motor Output (HP) Normal Duty | 30 HP |
Delta 22kW Mega Capacity Drive VFD220C43E Technical Specifications:
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 3 - phase AC 380V ~ 480V (-15%~+10% ), 50/60Hz |
| Output Capacity (kVA) Normal Duty | 36 kVA |
| Output Current (A) Normal Duty | 45 A |
| Applicable Motor Output (kW) Normal Duty | 22 kW |
| Applicable Motor Output (HP) Normal Duty | 30 HP |
| Cooling Method | Fan Cooling |
| Efficiency (%) | 97.8 |
| IP Level | IP20 |
| NEMA Protection Level | No NEMA Protection Level |
| Storage/Transportation Temperature | -25 ~ 70 |
| Braking Chopper | Built-IN Braking Chopper |
| Control Method | Pulse Width Modulated (PWM) |
| Installation Type | Built-in conduit box |
| V/F Curve | 4-point adjustable V/F curve and square curve |
| Input Frequency Tolerance | 47 ~ 63Hz |
| Voltage Tolerance | 323 ~ 528 VAC |
| Drive Weight (Kg) | 9.8 ± 1.5 kg |
Talk to Our Engineer for Delta 22kW Mega Capacity Drive, VFD220C43E with exclusive offers. In-depth Technical Analysis of VFD220C43E includes No NEMA Protection Level, Built-IN Braking Chopper, Pulse Width Modulated (PWM) & Built-in conduit box. Moreover, it features 22 kW, 36 kVA & 45 A. Don't Miss Out on a Quote for your requirement of Delta 22kW Mega Capacity Drive. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
