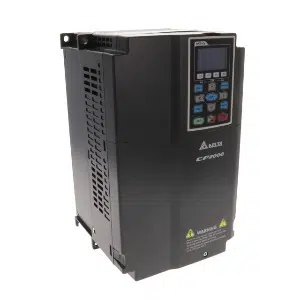

VFD220CP23A-21: Delta 22kW High-capacity VFD
Technical Specification of Delta 22kW High-capacity VFD VFD220CP23A-21:
Spec | Value |
---|---|
Input Voltage / Frequency | 230V, Three-Phase AC 200V~240V(-15%-+10%), 50/60Hz |
Output Capacity (kVA) Normal Duty | 90 A |
Applicable Motor Output (kW) Normal Duty | 22 kW |
Applicable Motor Output (HP) Normal Duty | 30 HP |
Delta 22kW High-capacity VFD VFD220CP23A-21 Technical Specifications:
Specification | Value |
---|---|
Input Voltage / Frequency | 230V, Three-Phase AC 200V~240V(-15%-+10%), 50/60Hz |
Output Capacity (kVA) Normal Duty | 36 kVA |
Output Current (A) Normal Duty | 90 A |
Applicable Motor Output (kW) Normal Duty | 22 kW |
Applicable Motor Output (HP) Normal Duty | 30 HP |
Cooling Method | Fan Cooling |
Efficiency (%) | 96.5 |
IP Level | IP20 |
NEMA Protection Level | NEMA 1 |
Storage/Transportation Temperature | -25ºC ~ +70ºC |
Braking Chopper | Built-In Braking Chopper |
Control Method | Pulse Width Modulation (PWM) |
Installation Type | Wall-Mounting |
V/F Curve | 4 point adjustable V / F curve and square curve |
Input Frequency Tolerance | 47~63Hz |
Voltage Tolerance | 170~265Vac |
Please speak to our Technical Engineer for Delta 22kW High-capacity VFD, VFD220CP23A-21 at attractive prices. Technical Specs Summary of VFD220CP23A-21 includes NEMA 1, Built-In Braking Chopper, Pulse Width Modulation (PWM) & Wall-Mounting. And Special Features Are 36 kVA, 90 A & 22 kW. Match Your Needs with a Quote for your requirement of Delta 22kW High-capacity VFD. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
