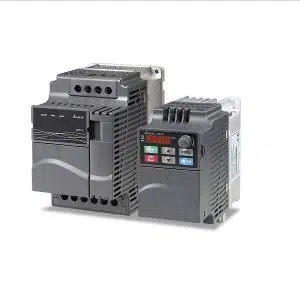

VFD220E43A : Delta 22kW VFD
Technical Specifications of Delta 22kW VFD220E43A:
- Series: E
- Input Voltage: 460V Three-phase
- Motor Output (kW): 22 kW
- Motor Output (HP): 30 HP
- Output Capacity (kVA): 34 kVA
- Cooling Method: Fan Cooling
- Enclosure Rating: IP20.
Delta 22kW VFD220E43A Technical Specifications:
| Series Name | E |
| Input Voltage / Frequency | 460V, Three-phase, 380-480V, 50/60Hz |
| Applicable Motor Output ( kW) | 22 kW |
| Applicable Motor Output (HP) | 30 HP |
| Output Current (A) | 45 A |
| Output Capacity (kVA) | 34 kVA |
| Cooling Method | Fan Cooling |
| IP Level | IP20 |
| Pollution Degree | 2 |
| Storage/Transportation Temperature | 20’C~60’C |
| Ambient Humidity | Below 90% RH (non-condensing) |
| Version Type | A: Standard drive |
| V/F Pattem | SPWM (Sinusoidal Pulse Width Modulation) Control (V/F or sensorless vector control) |
| Input Frequency Tolerance | ±5% (47-63Hz) |
| Voltage Tolerance | ±10% (342-528V) |
| Net Weight | 7.47 kg |
IndMALL offers the Delta VFD220E43A, a Series E 22 kW VFD (30 HP), featuring an input voltage of 460V three-phase, an output capacity of 34 kVA, fan cooling, and an enclosure rating of IP20, making it an ideal choice for robust industrial applications.
