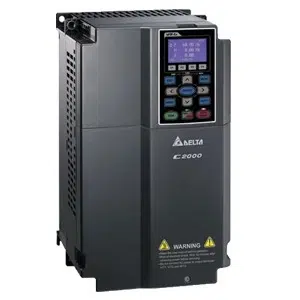

VFD2500C63B-21: Delta 2500kW Superior Power System
Technical Specifications of Delta 2500kW Superior Power System VFD2500C63B-21:
| Spec | Value |
|---|---|
| Input Voltage / Frequency | 3-Phase 525VAC ~ 690VAC ( -15% ~ +10%), 50 / 60Hz |
| Output Capacity (kVA) Normal Duty | 239 kVA |
| Output Current (A) Normal Duty | 220 A |
| Applicable Motor Output (kW) Normal Duty | 200 kW |
| Applicable Motor Output (HP) Normal Duty | 270 HP |
Delta 2500kW Superior Power System VFD2500C63B-21 Technical Specifications:
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 3-Phase 525VAC ~ 690VAC ( -15% ~ +10%), 50 / 60Hz |
| Output Capacity (kVA) Normal Duty | 239 kVA |
| Output Current (A) Normal Duty | 220 A |
| Applicable Motor Output (kW) Normal Duty | 200 kW |
| Applicable Motor Output (HP) Normal Duty | 270 HP |
| Cooling Method | Fan Cooling |
| Efficiency (%) | 98 |
| IP Level | IP20 |
| NEMA Protection Level | NEMA 1 |
| Storage/Transportation Temperature | -25 ~ 70 |
| Braking Chopper | Optional Braking Chopper |
| Control Method | Pulse Width Modulated (PWM) |
| Installation Type | Wall mount with 690V rated current |
| V/F Curve | 4-point adjustable V/F curve and square curve |
| Input Frequency Tolerance | 47 ~ 63Hz |
| Voltage Tolerance | 446 ~ 759VAC |
| Drive Weight (Kg) | 135±4 kg |
IndMALL Automation Dealing offers Delta 2500kW Superior Power System, VFD2500C63B-21 at unbeatable prices. The Main Technical Parameters of VFD2500C63B-21 includes NEMA 1, Optional Braking Chopper, Pulse Width Modulated (PWM) & Wall mount with 690V rated current. Additionally, it provides 200 kW, 239 kVA & 220 A. Take the First Step with a Quote for your requirement of Delta 2500kW Superior Power System. Choose us for unparalleled pricing and support over other Dealers & Distributors.
