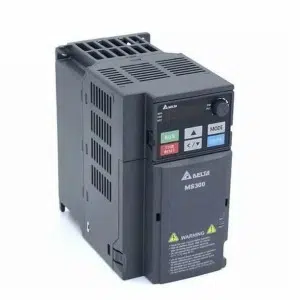

VFD25AME23ANSAA: Delta 25A VFD
Technical Specifications of VFD25AME23ANSAA Delta 25A VFD:
| Spec | Value |
|---|---|
| Series Name | ME300 |
| Input Voltage Frequency | 230V, Three-phase AC, 200V~240V (-15% ~ + 10%), 50 / 60Hz |
| Applicable Motor Output ( kW) | 5.5 kW |
| Applicable Motor Output (HP) | 7.5 HP |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
Delta 25A VFD25AME23ANSAA Technical specifications:
| Specification | Value |
|---|---|
| Series Name | ME300 |
| Input Voltage / Frequency | 230V, Three-phase AC, 200V~240V (-15% ~ + 10%), 50 / 60Hz |
| Applicable Motor Output ( kW) | 5.5 kW |
| Applicable Motor Output (HP) | 7.5 HP |
| Heavy Duty Rated Output Current (A) | 25 A |
| Normal Duty Rated Output Current (A) | 27 A |
| Cooling Method | Fan cooling |
| IP Level | IP20 |
| EMC Filter | None |
| Safe Torque Off (STO) | STO Model |
| Model Type | Standard model |
| Braking Chopper | Built-in |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
| MODBUS COM | Built-in |
| Control Methods | V/F, SVC |
| Size: W × H (mm) | 87 × 157 |
| Size: D (mm) | 138 |
| Net Weight | 2 |
Ask for the Pricing of Delta 25A VFD, VFD25AME23ANSAA with budget-friendly prices. Specifications Overview for VFD25AME23ANSAA reveals Model Type is Standard model, STO Model, None EMC Filter & Built-in Braking Chopper. And It Comes With 5.5 kW, 7.5 HP & 25 A. Customize Your Experience with a Quote for your requirement of Delta 25A VFD. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
