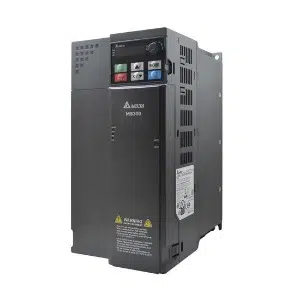

VFD25AMS23ENSAA: Delta 460V 3-Phase 7.5 HP Drive
Technical Specifications of VFD25AMS23ENSAA Delta 460V 3-Phase 7.5 HP Drive:
| Spec | Value |
|---|---|
| Series Name | MS300 |
| Input Voltage Frequency | 230V, Three-phase AC 200 V ~240 V，50 / 60 Hz |
| Applicable Motor Output ( kW) | 5.5 kW |
| Applicable Motor Output (HP) | 7.5 HP |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
Delta 460V 3-Phase 7.5 HP Drive VFD25AMS23ENSAA Technical Specifications:
| Specification | Value |
|---|---|
| Series Name | MS300 |
| Input Voltage / Frequency | 230V, Three-phase AC 200 V ~240 V，50 / 60 Hz |
| Applicable Motor Output ( kW) | 5.5 kW |
| Applicable Motor Output (HP) | 7.5 HP |
| Heavy Duty Rated Output Current (A) | 25 A |
| Normal Duty Rated Output Current (A) | 27 A |
| Cooling Method | Fan cooling |
| IP Level | IP40 (Anti-dust) |
| EMC Filter | None EMC Filter |
| Safe Torque Off (STO) | Integrated STO |
| Model Type | Standard Model |
| Braking Chopper | Built-in Braking Chopper |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
| MODBUS COM | - |
| Control Methods | V/F, SVC, FOC Sensorless |
| Size: W × H (mm) | 109×207 |
| Size: D (mm) | 154 |
| Net Weight | 4.25 kg |
IndMALL Automation Dealing offers Delta 460V 3-Phase 7.5 HP Drive, VFD25AMS23ENSAA at unbeatable prices. The Main Technical Parameters of VFD25AMS23ENSAA includes Standard Model, Integrated STO, None EMC Filter & Built-in Braking Chopper. Additionally, it provides 5.5 kW, 7.5 HP & 25 A. Take the First Step with a Quote for your requirement of Delta 460V 3-Phase 7.5 HP Drive. Choose us for unparalleled pricing and support over other Dealers & Distributors.
