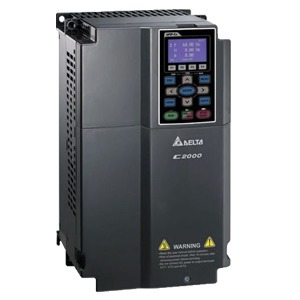

VFD2800C43A: Delta 2800kW Advanced Drive
Technical Specifications of Delta 2800kW Advanced Drive VFD2800C43A:
| Spec | Value |
|---|---|
| Input Voltage / Frequency | 3 - phase AC 380V ~ 480V (-15%~+10% ), 50/60Hz |
| Output Capacity (kVA) Normal Duty | 438 kVA |
| Output Current (A) Normal Duty | 550 A |
| Applicable Motor Output (kW) Normal Duty | 280 kW |
| Applicable Motor Output (HP) Normal Duty | 375 HP |
Delta 2800kW Advanced Drive VFD2800C43A Technical Specifications:
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 3 - phase AC 380V ~ 480V (-15%~+10% ), 50/60Hz |
| Output Capacity (kVA) Normal Duty | 438 kVA |
| Output Current (A) Normal Duty | 550 A |
| Applicable Motor Output (kW) Normal Duty | 280 kW |
| Applicable Motor Output (HP) Normal Duty | 375 HP |
| Cooling Method | Fan Cooling |
| Efficiency (%) | 98.2 |
| IP Level | IP20 |
| NEMA Protection Level | No NEMA Protection Level |
| Storage/Transportation Temperature | -25 ~ 70 |
| Braking Chopper | Optional Braking Chopper |
| Control Method | Pulse Width Modulated (PWM) |
| Installation Type | Wall mount |
| V/F Curve | 4-point adjustable V/F curve and square curve |
| Input Frequency Tolerance | 47 ~ 63Hz |
| Voltage Tolerance | 323 ~ 528 VAC |
| Drive Weight (Kg) | 228 kg |
Obtain a Quote for Delta 2800kW Advanced Drive, VFD2800C43A at attractive prices. Core System Specifications of VFD2800C43A are No NEMA Protection Level, Optional Braking Chopper, Pulse Width Modulated (PWM) & Wall mount. It functionality Includes 280 kW, 438 kVA & 550 A. Elevate Your Project with a Quote for your requirement of Delta 2800kW Advanced Drive. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
