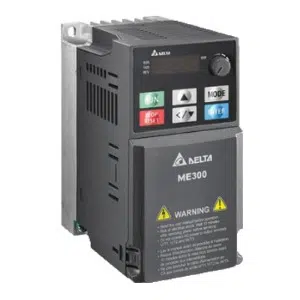

VFD2A5ME11ANSAA: Delta 2.5A 115V VFD
Technical Specifications of VFD2A5ME11ANSAA Delta 2.5A 115V VFD:
| Spec | Value |
|---|---|
| Series Name | ME300 |
| Input Voltage Frequency | 115V, Single-phase AC, 100V~120V (-15% ~ + 10%), 50 / 60Hz |
| Applicable Motor Output ( kW) | 0.4 |
| Applicable Motor Output (HP) | 1/2 |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
Delta 2.5A 115V VFD2A5ME11ANSAA Technical specifications:
| Specification | Value |
|---|---|
| Series Name | ME300 |
| Input Voltage / Frequency | 115V, Single-phase AC, 100V~120V (-15% ~ + 10%), 50 / 60Hz |
| Applicable Motor Output ( kW) | 0.4 |
| Applicable Motor Output (HP) | 1/2 |
| Heavy Duty Rated Output Current (A) | 2.5 |
| Normal Duty Rated Output Current (A) | 2.7 |
| Cooling Method | Natural air cooling |
| IP Level | IP20 |
| EMC Filter | None |
| Safe Torque Off (STO) | STO Model |
| Model Type | Standard model |
| Braking Chopper | Built-in |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
| MODBUS COM | Built-in |
| Control Methods | V/F, SVC |
| Size: W × H (mm) | 68 × 128 |
| Size: D (mm) | 107 |
| Net Weight | 0.5 |
The Delta 2.5A 115V VFD, known as the VFD2A5ME11ANSAA, is a standard model offered by IndMALL, featuring an input voltage of 115V single-phase AC, a motor output of 0.4 kW (1/2 HP), and an output current of 2.5 A. It incorporates natural air cooling, lacks an EMC filter, includes a built-in braking chopper, and supports control methods such as V/F and SVC.
