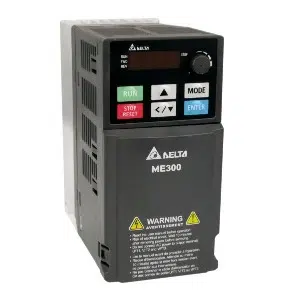

VFD2A7ME43ANSAA: Delta 460V 3-phase 1HP VFD
Technical Specifications of VFD2A7ME43ANSAA Delta 460V 3-phase 1HP VFD:
| Spec | Value |
|---|---|
| Series Name | ME300 |
| Input Voltage Frequency | 460V, Three-phase AC, 380V~480V (-15% ~ + 10%), 50 / 60Hz |
| Applicable Motor Output ( kW) | 0.75 |
| Applicable Motor Output (HP) | 1 |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
Delta 460V 3-phase 1HP VFD2A7ME43ANSAA Technical specifications:
| Specification | Value |
|---|---|
| Series Name | ME300 |
| Input Voltage / Frequency | 460V, Three-phase AC, 380V~480V (-15% ~ + 10%), 50 / 60Hz |
| Applicable Motor Output ( kW) | 0.75 |
| Applicable Motor Output (HP) | 1 |
| Heavy Duty Rated Output Current (A) | 2.7 |
| Normal Duty Rated Output Current (A) | 3 |
| Cooling Method | Natural air cooling |
| IP Level | IP20 |
| EMC Filter | None |
| Safe Torque Off (STO) | STO Model |
| Model Type | Standard model |
| Braking Chopper | Built-in |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
| MODBUS COM | Built-in |
| Control Methods | V/F, SVC |
| Size: W × H (mm) | 68 × 128 |
| Size: D (mm) | 127 |
| Net Weight | 0.9 |
The Delta 460V 3-phase 1HP VFD, part of the ME300 Series, offers 0.75 kW motor output with an output current of 2.7 A, natural air cooling, and a built-in braking chopper. IndMALL offers this standard model, the Delta VFD2A7ME43ANSAA, which supports control methods like V/F and SVC, ensuring efficient operation without an EMC filter.
