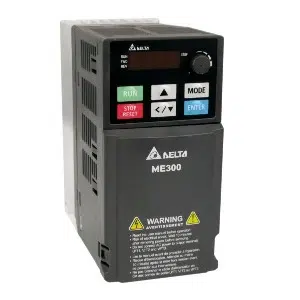

VFD2A8ME21AFNAA: Delta 1/2 HP VFD
Technical Specifications of VFD2A8ME21AFNAA Delta 1/2 HP VFD:
| Spec | Value |
|---|---|
| Series Name | ME300 |
| Input Voltage Frequency | 230V, Single-phase AC, 200V~240V (-15% ~ + 10%), 50 / 60Hz |
| Applicable Motor Output ( kW) | 0.4 |
| Applicable Motor Output (HP) | 1/2 |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
Delta 1/2 HP VFD2A8ME21AFNAA Technical specifications:
| Specification | Value |
|---|---|
| Series Name | ME300 |
| Input Voltage / Frequency | 230V, Single-phase AC, 200V~240V (-15% ~ + 10%), 50 / 60Hz |
| Applicable Motor Output ( kW) | 0.4 |
| Applicable Motor Output (HP) | 1/2 |
| Heavy Duty Rated Output Current (A) | 2.8 |
| Normal Duty Rated Output Current (A) | 3.2 |
| Cooling Method | Fan cooling |
| IP Level | IP20 |
| EMC Filter | Built-In |
| Safe Torque Off (STO) | None |
| Model Type | Standard model |
| Braking Chopper | Built-in |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
| MODBUS COM | Built-in |
| Control Methods | V/F, SVC |
| Size: W × H (mm) | 72 x 142 |
| Size: D (mm) | 143 |
| Net Weight | 0.5 |
The Delta 1/2 HP VFD, model VFD2A8ME21AFNAA from the ME300 series, is designed for efficiency with a 0.4 kW motor output, operating on 230V single-phase AC. IndMALL offers this standard model, which features advanced V/F and SVC control methods, fan cooling, a built-in EMC filter, and a braking chopper, all protected by IP20 casing. Its comprehensive design ensures optimal performance for industrial automation tasks. With its robust features, this VFD stands out as a reliable solution for enhancing operational capabilities.
