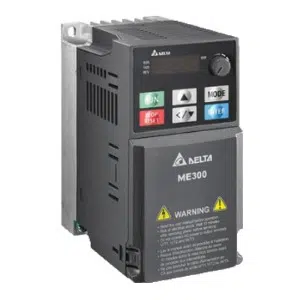

VFD2A8ME21ANSAA: Delta 230V Single-phase 0.4kW VFD
Technical Specifications of VFD2A8ME21ANSAA Delta 230V Single-phase 0.4kW VFD:
| Spec | Value |
|---|---|
| Series Name | ME300 |
| Input Voltage Frequency | 230V, Single-phase AC, 200V~240V (-15% ~ + 10%), 50 / 60Hz |
| Applicable Motor Output ( kW) | 0.4 |
| Applicable Motor Output (HP) | 1/2 |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
Delta 230V Single-phase 0.4kW VFD2A8ME21ANSAA Technical specifications:
| Specification | Value |
|---|---|
| Series Name | ME300 |
| Input Voltage / Frequency | 230V, Single-phase AC, 200V~240V (-15% ~ + 10%), 50 / 60Hz |
| Applicable Motor Output ( kW) | 0.4 |
| Applicable Motor Output (HP) | 1/2 |
| Heavy Duty Rated Output Current (A) | 2.8 |
| Normal Duty Rated Output Current (A) | 3.2 |
| Cooling Method | Natural air cooling |
| IP Level | IP20 |
| EMC Filter | None |
| Safe Torque Off (STO) | STO Model |
| Model Type | Standard model |
| Braking Chopper | Built-in |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
| MODBUS COM | Built-in |
| Control Methods | V/F, SVC |
| Size: W × H (mm) | 68 × 128 |
| Size: D (mm) | 107 |
| Net Weight | 0.9 |
The Delta 2.5A 115V VFD, part of the ME300 Series, is designed for efficient operation with a 230V, single-phase AC input, delivering a motor output of 0.4 kW (1/2 HP) and an output current of 2.8 A. This standard model, featuring natural air cooling, a built-in braking chopper, and without an EMC filter, supports both V/F and SVC control methods. IndMALL offers this Delta VFD2A8ME21ANSAA, highlighting its practicality for a variety of applications.
