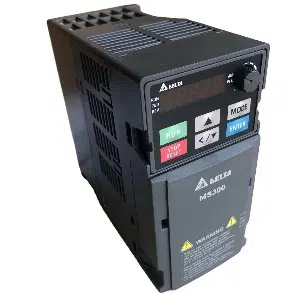

VFD2A8MS21MNSAA: Delta 230V Single-Phase 0.4kW VFD
Technical Specifications of VFD2A8MS21MNSAA Delta 230V Single-Phase 0.4kW VFD:
Spec | Value |
---|---|
Series Name | MS300 |
Input Voltage Frequency | 230V, Single-phase AC 200 V ~240 V (-15% ~ +10%), 50 / 60 Hz |
Applicable Motor Output ( kW) | 0.4 kW |
Applicable Motor Output (HP) | 0.5 HP |
Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
Delta 230V Single-Phase 0.4kW VFD VFD2A8MS21MNSAA Technical Specifications:
Specification | Value |
---|---|
Series Name | MS300 |
Input Voltage / Frequency | 230V, Single-phase AC 200 V ~240 V (-15% ~ +10%), 50 / 60 Hz |
Applicable Motor Output ( kW) | 0.4 kW |
Applicable Motor Output (HP) | 0.5 HP |
Heavy Duty Rated Output Current (A) | 2.8 A |
Normal Duty Rated Output Current (A) | 3.2 A |
Cooling Method | Natural air cooling |
IP Level | IP66 / NEMA 4X |
EMC Filter | None EMC Filter |
Safe Torque Off (STO) | Integrated STO |
Model Type | Standard Model |
Braking Chopper | Built-in Braking Chopper |
Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
MODBUS COM | - |
Control Methods | V/F, SVC, FOC Sensorless |
Size: W × H (mm) | 68×128 |
Size: D (mm) | 125 |
Net Weight | 2.25 kg |
IndMALL Automation Dealing offers Delta 230V Single-Phase 0.4kW VFD, VFD2A8MS21MNSAA at unbeatable prices. The Main Technical Parameters of VFD2A8MS21MNSAA includes Standard Model, Integrated STO, None EMC Filter & Built-in Braking Chopper. Additionally, it provides 0.4 kW, 0.5 HP & 2.8 A. Take the First Step with a Quote for your requirement of Delta 230V Single-Phase 0.4kW VFD. Choose us for unparalleled pricing and support over other Dealers & Distributors.
