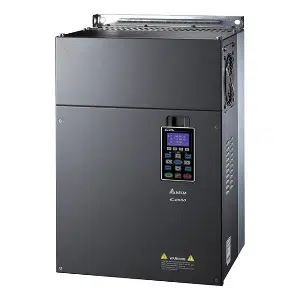

VFD300C63B-21: Delta 30kW Max Performance Drive
Technical Specifications of Delta 30kW Max Performance Drive VFD300C63B-21:
| Spec | Value |
|---|---|
| Input Voltage / Frequency | 3-Phase 525VAC ~ 690VAC ( -15% ~ +10%), 50 / 60Hz |
| Output Capacity (kVA) Normal Duty | 36 kVA |
| Output Current (A) Normal Duty | 30 A |
| Applicable Motor Output (kW) Normal Duty | 22 kW |
| Applicable Motor Output (HP) Normal Duty | 30 HP |
Delta 30kW Max Performance Drive VFD300C63B-21 Technical Specifications:
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 3-Phase 525VAC ~ 690VAC ( -15% ~ +10%), 50 / 60Hz |
| Output Capacity (kVA) Normal Duty | 36 kVA |
| Output Current (A) Normal Duty | 30 A |
| Applicable Motor Output (kW) Normal Duty | 22 kW |
| Applicable Motor Output (HP) Normal Duty | 30 HP |
| Cooling Method | Fan Cooling |
| Efficiency (%) | 97 |
| IP Level | IP20 |
| NEMA Protection Level | NEMA 1 |
| Storage/Transportation Temperature | -25 ~ 70 |
| Braking Chopper | Built-IN Braking Chopper |
| Control Method | Pulse Width Modulated (PWM) |
| Installation Type | Wall mount with 690V rated current |
| V/F Curve | 4-point adjustable V/F curve and square curve |
| Input Frequency Tolerance | 47 ~ 63Hz |
| Voltage Tolerance | 446 ~ 759VAC |
| Drive Weight (Kg) | 10±1.5 kg |
Mail Us for your needs in Delta 30kW Max Performance Drive, VFD300C63B-21 with budget-friendly prices. The Main Technical Parameters of VFD300C63B-21 include NEMA 1, Built-IN Braking Chopper, Pulse Width Modulated (PWM) & Wall mount with 690V rated current. Additionally, it provides 36 kVA, 30 A & 22 kW. Customize Your Experience with a Quote for your requirement of Delta 30kW Max Performance Drive. Experience the difference with our competitive pricing and superior support over other Suppliers.
