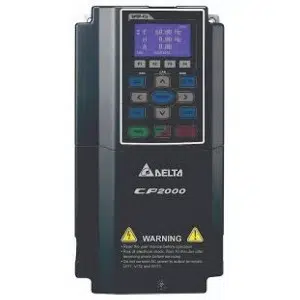

VFD3150CP43A-00: Delta 315kW Ultimate Drive
Technical Specification of Delta 315kW Ultimate Drive VFD3150CP43A-00:
| Spec | Value |
|---|---|
| Input Voltage / Frequency | 460V, Three-Phase AC 380V~480V(-15%-+10%),50/60Hz |
| Output Capacity (kVA) Normal Duty | 616 A |
| Applicable Motor Output (kW) Normal Duty | 315 kW |
| Applicable Motor Output (HP) Normal Duty | 425 HP |
Delta 315kW Ultimate Drive VFD3150CP43A-00 Technical Specifications:
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 460V, Three-Phase AC 380V~480V(-15%-+10%),50/60Hz |
| Output Capacity (kVA) Normal Duty | 491 kVA |
| Output Current (A) Normal Duty | 616 A |
| Applicable Motor Output (kW) Normal Duty | 315 kW |
| Applicable Motor Output (HP) Normal Duty | 425 HP |
| Cooling Method | Fan Cooling |
| Efficiency (%) | 97.5 |
| IP Level | IP00 |
| NEMA Protection Level | UL Open Type |
| Storage/Transportation Temperature | -25ºC ~ +70ºC |
| Braking Chopper | Optional Braking Chopper |
| Control Method | Pulse Width Modulation (PWM) |
| Installation Type | Wall-Mounting |
| V/F Curve | 4 point adjustable V / F curve and square curve |
| Input Frequency Tolerance | 47~63Hz |
| Voltage Tolerance | 232~528Vac |
Talk to Our Engineer for Delta 315kW Ultimate Drive, VFD3150CP43A-00 with exclusive offers. Core System Specifications of VFD3150CP43A-00 are UL Open Type, Optional Braking Chopper, Pulse Width Modulation (PWM) & Wall-Mounting. And It Comes With 491 kVA, 616 A & 315 kW. Don't Miss Out on a Quote for your requirement of Delta 315kW Ultimate Drive. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
