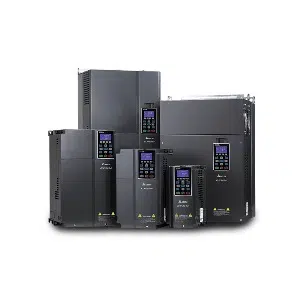

VFD3550CP43C-21: Delta 355kW Tailored Solution Drive
Technical Specification of Delta 355kW Tailored Solution Drive VFD3550CP43C-21:
| Spec | Value |
|---|---|
| Input Voltage / Frequency | 460V, Three-Phase AC 380V~480V(-15%-+10%),50/60Hz |
| Output Capacity (kVA) Normal Duty | 683 A |
| Applicable Motor Output (kW) Normal Duty | 355 kW |
| Applicable Motor Output (HP) Normal Duty | 475 HP |
Delta 355kW Tailored Solution Drive VFD3550CP43C-21 Technical Specifications:
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 460V, Three-Phase AC 380V~480V(-15%-+10%),50/60Hz |
| Output Capacity (kVA) Normal Duty | 544 kVA |
| Output Current (A) Normal Duty | 683 A |
| Applicable Motor Output (kW) Normal Duty | 355 kW |
| Applicable Motor Output (HP) Normal Duty | 475 HP |
| Cooling Method | Fan Cooling |
| Efficiency (%) | 97.5 |
| IP Level | IP20 |
| NEMA Protection Level | NEMA 1 |
| Storage/Transportation Temperature | -25ºC ~ +70ºC |
| Braking Chopper | Optional Braking Chopper |
| Control Method | Pulse Width Modulation (PWM) |
| Installation Type | Floor-Mounting |
| V/F Curve | 4 point adjustable V / F curve and square curve |
| Input Frequency Tolerance | 47~63Hz |
| Voltage Tolerance | 232~528Vac |
IndMALL Automation Offers Delta 355kW Tailored Solution Drive, VFD3550CP43C-21 with exclusive offers. Component Specifications of VFD3550CP43C-21 features NEMA 1, Optional Braking Chopper, Pulse Width Modulation (PWM) & Floor-Mounting. It rounds off its features with 355 kW, 544 kVA & 683 A. Don't Miss Out on a Quote for your requirement of Delta 355kW Tailored Solution Drive. Our competitive edge: better pricing and support than other Suppliers.
