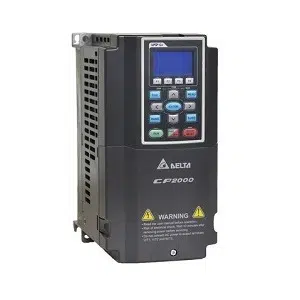

VFD370CP43B-21: Delta 37kW Heavy-duty VFD
Technical Specification of Delta 37kW Heavy-duty VFD VFD370CP43B-21:
| Spec | Value |
|---|---|
| Input Voltage / Frequency | 460V, Three-Phase AC 380V~480V(-15%-+10%),50/60Hz |
| Output Capacity (kVA) Normal Duty | 73 A |
| Applicable Motor Output (kW) Normal Duty | 37 kW |
| Applicable Motor Output (HP) Normal Duty | 50 HP |
Delta 37kW Heavy-duty VFD VFD370CP43B-21 Technical Specifications:
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 460V, Three-Phase AC 380V~480V(-15%-+10%),50/60Hz |
| Output Capacity (kVA) Normal Duty | 58 kVA |
| Output Current (A) Normal Duty | 73 A |
| Applicable Motor Output (kW) Normal Duty | 37 kW |
| Applicable Motor Output (HP) Normal Duty | 50 HP |
| Cooling Method | Fan Cooling |
| Efficiency (%) | 96.5 |
| IP Level | IP20 |
| NEMA Protection Level | NEMA 1 |
| Storage/Transportation Temperature | -25ºC ~ +70ºC |
| Braking Chopper | Built-In Braking Chopper |
| Control Method | Pulse Width Modulation (PWM) |
| Installation Type | Wall-Mounting |
| V/F Curve | 4 point adjustable V / F curve and square curve |
| Input Frequency Tolerance | 47~63Hz |
| Voltage Tolerance | 232~528Vac |
IndMALL Offers Delta 37kW Heavy-duty VFD, VFD370CP43B-21 at economical Choices. Product Tech Specs of VFD370CP43B-21 includes NEMA 1, Built-In Braking Chopper, Pulse Width Modulation (PWM) & Wall-Mounting. And It Includes 37 kW, 58 kVA & 73 A. Now's the Time to Secure a Quote for your requirement of Delta 37kW Heavy-duty VFD. Trust in our superior pricing and more dedicated support over other Distributors.
