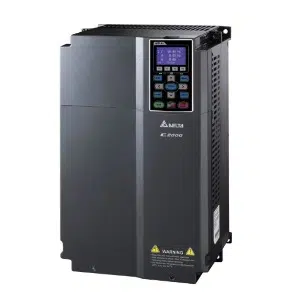

VFD450C23E: Delta 45kW Efficient Drive
Technical Specifications of Delta 45kW Efficient Drive VFD450C23E:
| Spec | Value |
|---|---|
| Input Voltage / Frequency | 3-phase AC 200V ~ 240V (-15%~+10%), 50/60Hz |
| Output Capacity (kVA) Normal Duty | 72 kVA |
| Output Current (A) Normal Duty | 180 A |
| Applicable Motor Output (kW) Normal Duty | 45 kW |
| Applicable Motor Output (HP) Normal Duty | 60 HP |
Delta 45kW Efficient Drive VFD450C23E Technical Specifications:
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 3-phase AC 200V ~ 240V (-15%~+10%), 50/60Hz |
| Output Capacity (kVA) Normal Duty | 72 kVA |
| Output Current (A) Normal Duty | 180 A |
| Applicable Motor Output (kW) Normal Duty | 45 kW |
| Applicable Motor Output (HP) Normal Duty | 60 HP |
| Cooling Method | Fan Cooling |
| Efficiency (%) | 98.2 |
| IP Level | IP20 |
| NEMA Protection Level | No NEMA Protection Level |
| Storage/Transportation Temperature | -25 ~ 70 |
| Braking Chopper | Optional Braking Chopper |
| Control Method | Pulse Width Modulated (PWM) |
| Installation Type | Built-in conduit box |
| V/F Curve | 4-point adjustable V/F curve and square curve |
| Input Frequency Tolerance | 47 ~ 63Hz |
| Voltage Tolerance | 170 ~ 264Vac |
| Drive Weight (Kg) | 64.8 ± 1.5 kg |
Reach Us by Email for Delta 45kW Efficient Drive, VFD450C23E at Discounted Rates. Key Technical Features of VFD450C23E are No NEMA Protection Level, Optional Braking Chopper, Pulse Width Modulated (PWM) & Built-in conduit box. Additionally, it provides 45 kW, 72 kVA & 180 A. Navigate Your Needs with a Quote for your requirement of Delta 45kW Efficient Drive. Our pricing and support are unrivaled, especially when compared to other Competitors.
