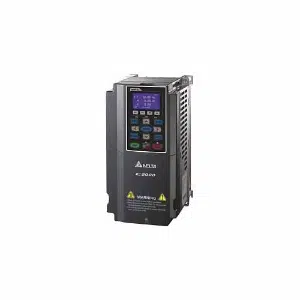

VFD450C63B-21: Delta 45kW Specialized Solution
Technical Specifications of Delta 45kW Specialized Solution VFD450C63B-21:
| Spec | Value |
|---|---|
| Input Voltage / Frequency | 3-Phase 525VAC ~ 690VAC ( -15% ~ +10%), 50 / 60Hz |
| Output Capacity (kVA) Normal Duty | 54 kVA |
| Output Current (A) Normal Duty | 45 A |
| Applicable Motor Output (kW) Normal Duty | 37 kW |
| Applicable Motor Output (HP) Normal Duty | 50 HP |
Delta 45kW Specialized Solution VFD450C63B-21 Technical Specifications:
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 3-Phase 525VAC ~ 690VAC ( -15% ~ +10%), 50 / 60Hz |
| Output Capacity (kVA) Normal Duty | 54 kVA |
| Output Current (A) Normal Duty | 45 A |
| Applicable Motor Output (kW) Normal Duty | 37 kW |
| Applicable Motor Output (HP) Normal Duty | 50 HP |
| Cooling Method | Fan Cooling |
| Efficiency (%) | 97 |
| IP Level | IP20 |
| NEMA Protection Level | NEMA 1 |
| Storage/Transportation Temperature | -25 ~ 70 |
| Braking Chopper | Optional Braking Chopper |
| Control Method | Pulse Width Modulated (PWM) |
| Installation Type | Wall mount with 690V rated current |
| V/F Curve | 4-point adjustable V/F curve and square curve |
| Input Frequency Tolerance | 47 ~ 63Hz |
| Voltage Tolerance | 446 ~ 759VAC |
| Drive Weight (Kg) | 39±1.5 kg |
Obtain a Quote for Delta 45kW Specialized Solution, VFD450C63B-21 at attractive prices. Core System Specifications of VFD450C63B-21 are NEMA 1, Optional Braking Chopper, Pulse Width Modulated (PWM) & Wall mount with 690V rated current. It functionality Includes 37 kW, 54 kVA & 45 A. Elevate Your Project with a Quote for your requirement of Delta 45kW Specialized Solution. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
