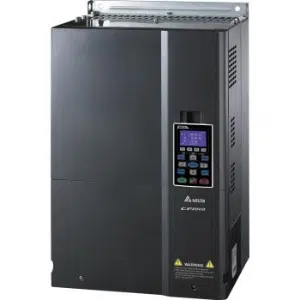

VFD450CP23A-21: Delta 45kW High-Capacity Drive
Technical Specification of Delta 45kW High-Capacity Drive VFD450CP23A-21:
| Spec | Value |
|---|---|
| Input Voltage / Frequency | 230V, Three-Phase AC 200V~240V(-15%-+10%), 50/60Hz |
| Output Capacity (kVA) Normal Duty | 180 A |
| Applicable Motor Output (kW) Normal Duty | 45 kW |
| Applicable Motor Output (HP) Normal Duty | 60 HP |
Delta 45kW High-Capacity Drive VFD450CP23A-21 Technical Specifications:
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 230V, Three-Phase AC 200V~240V(-15%-+10%), 50/60Hz |
| Output Capacity (kVA) Normal Duty | 72 kVA |
| Output Current (A) Normal Duty | 180 A |
| Applicable Motor Output (kW) Normal Duty | 45 kW |
| Applicable Motor Output (HP) Normal Duty | 60 HP |
| Cooling Method | Fan Cooling |
| Efficiency (%) | 97 |
| IP Level | IP20 |
| NEMA Protection Level | NEMA 1 |
| Storage/Transportation Temperature | -25ºC ~ +70ºC |
| Braking Chopper | Optional Braking Chopper |
| Control Method | Pulse Width Modulation (PWM) |
| Installation Type | Wall-Mounting |
| V/F Curve | 4 point adjustable V / F curve and square curve |
| Input Frequency Tolerance | 47~63Hz |
| Voltage Tolerance | 170~265Vac |
Mail Us for your needs in Delta 45kW High-Capacity Drive, VFD450CP23A-21 with budget-friendly prices. The Main Technical Parameters of VFD450CP23A-21 include NEMA 1, Optional Braking Chopper, Pulse Width Modulation (PWM) & Wall-Mounting. Additionally, it provides 72 kVA, 180 A & 45 kW. Customize Your Experience with a Quote for your requirement of Delta 45kW High-Capacity Drive. Experience the difference with our competitive pricing and superior support over other Suppliers.
