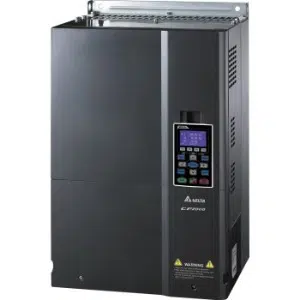

VFD450CP43S-00: Delta 45kW Durable VFD
Technical Specification of Delta 45kW Durable VFD VFD450CP43S-00:
| Spec | Value |
|---|---|
| Input Voltage / Frequency | 460V, Three-Phase AC 380V~480V(-15%-+10%),50/60Hz |
| Output Capacity (kVA) Normal Duty | 91 A |
| Applicable Motor Output (kW) Normal Duty | 45 kW |
| Applicable Motor Output (HP) Normal Duty | 60 HP |
Delta 45kW Durable VFD VFD450CP43S-00 Technical Specifications:
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 460V, Three-Phase AC 380V~480V(-15%-+10%),50/60Hz |
| Output Capacity (kVA) Normal Duty | 73 kVA |
| Output Current (A) Normal Duty | 91 A |
| Applicable Motor Output (kW) Normal Duty | 45 kW |
| Applicable Motor Output (HP) Normal Duty | 60 HP |
| Cooling Method | Fan Cooling |
| Efficiency (%) | 97 |
| IP Level | IP00 |
| NEMA Protection Level | UL Open Type |
| Storage/Transportation Temperature | -25ºC ~ +70ºC |
| Braking Chopper | Optional Braking Chopper |
| Control Method | Pulse Width Modulation (PWM) |
| Installation Type | Wall-Mounting |
| V/F Curve | 4 point adjustable V / F curve and square curve |
| Input Frequency Tolerance | 47~63Hz |
| Voltage Tolerance | 232~528Vac |
Call us for Delta 45kW Durable VFD, VFD450CP43S-00 at the best rates. Technical Attributes of VFD450CP43S-00 are Optional Braking Chopper, Pulse Width Modulation (PWM), Wall-Mounting & UL Open Type. And It Delivers 73 kVA, 91 A & 45 kW.Unlock Exclusive Pricing with a Quote for your requirement of Delta 45kW Durable VFD. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
