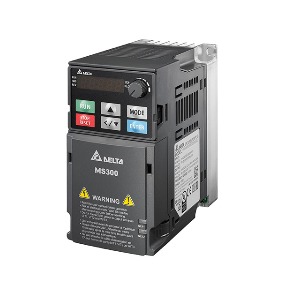

VFD45AMS43ANSHA: Delta 22kW Variable Frequency Drive
Technical Specifications of VFD45AMS43ANSHA Delta 22kW Variable Frequency Drive:
| Spec | Value |
|---|---|
| Series Name | MS300 |
| Input Voltage Frequency | 460V, Three-phase AC 380 V ~480 V，50 / 60 Hz |
| Applicable Motor Output ( kW) | 22 kW |
| Applicable Motor Output (HP) | 30 HP |
| Output Frequency | 0.00 ~ 1500.0Hz (±0.1%) |
Delta 22kW Variable Frequency Drive VFD45AMS43ANSHA Technical Specifications:
| Specification | Value |
|---|---|
| Series Name | MS300 |
| Input Voltage / Frequency | 460V, Three-phase AC 380 V ~480 V，50 / 60 Hz |
| Applicable Motor Output ( kW) | 22 kW |
| Applicable Motor Output (HP) | 30 HP |
| Heavy Duty Rated Output Current (A) | 45 A |
| Normal Duty Rated Output Current (A) | 49 A |
| Cooling Method | Fan cooling |
| IP Level | IP20 |
| EMC Filter | None EMC Filter |
| Safe Torque Off (STO) | Integrated STO |
| Model Type | High Speed Model |
| Braking Chopper | Built-in Braking Chopper |
| Output Frequency | 0.00 ~ 1500.0Hz (±0.1%) |
| MODBUS COM | - |
| Control Methods | V/F, SVC, FOC Sensorless |
| Size: W × H (mm) | 175×300 |
| Size: D (mm) | 192 |
| Net Weight | -- |
Send Us an Email for Delta 22kW Variable Frequency Drive, VFD45AMS43ANSHA with the special pricing. Engineering Specifications of VFD45AMS43ANSHA detail High Speed Model, Integrated STO, None EMC Filter & Built-in Braking Chopper. Moreover, it features 22 kW, 30 HP & 45 A. It's Time to get a Quote for your requirement of Delta 22kW Variable Frequency Drive. We excel in offering more cost-effective and supportive solutions than other Dealers.
