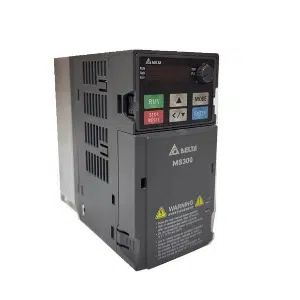

VFD49AMS23ANSHA: Delta 230 Volt 3 Phase 15 HP VFD
Technical Specifications of VFD49AMS23ANSHA Delta 230 Volt 3 Phase 15 HP VFD:
| Spec | Value |
|---|---|
| Series Name | MS300 |
| Input Voltage Frequency | 230V, Three-phase AC 200 V ~240 V，50 / 60 Hz |
| Applicable Motor Output ( kW) | 11 kW |
| Applicable Motor Output (HP) | 15 HP |
| Output Frequency | 0.00 ~ 1500.0Hz (±0.1%) |
Delta 230 Volt 3 Phase 15 HP VFD49AMS23ANSHA Technical Specifications:
| Specification | Value |
|---|---|
| Series Name | MS300 |
| Input Voltage / Frequency | 230V, Three-phase AC 200 V ~240 V，50 / 60 Hz |
| Applicable Motor Output ( kW) | 11 kW |
| Applicable Motor Output (HP) | 15 HP |
| Heavy Duty Rated Output Current (A) | 49 A |
| Normal Duty Rated Output Current (A) | 51 A |
| Cooling Method | Fan cooling |
| IP Level | IP20 |
| EMC Filter | None EMC Filter |
| Safe Torque Off (STO) | Integrated STO |
| Model Type | High Speed Model |
| Braking Chopper | Built-in Braking Chopper |
| Output Frequency | 0.00 ~ 1500.0Hz (±0.1%) |
| MODBUS COM | - |
| Control Methods | V/F, SVC, FOC Sensorless |
| Size: W × H (mm) | 130×250 |
| Size: D (mm) | 185 |
| Net Weight | -- |
Ask for the Pricing of Delta 230 Volt 3 Phase 15 HP VFD, VFD49AMS23ANSHA with budget-friendly prices. Specifications Overview for VFD49AMS23ANSHA reveals High Speed Model, Integrated STO, None EMC Filter & Built-in Braking Chopper. And It Comes With 11 kW, 15 HP & 49 A. Customize Your Experience with a Quote for your requirement of Delta 49A Output Current. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
