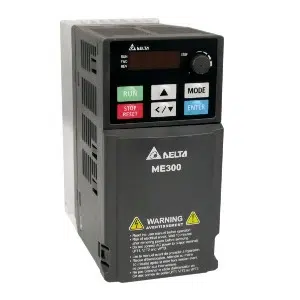

VFD4A2ME43ANSAA: Delta STO function VFD
Technical Specifications of VFD4A2ME43ANSAA Delta STO Function VFD:
| Spec | Value |
|---|---|
| Series Name | ME300 |
| Input Voltage Frequency | 460V, Three-phase AC, 380V~480V (-15% ~ + 10%), 50 / 60Hz |
| Applicable Motor Output ( kW) | 1.5 |
| Applicable Motor Output (HP) | 2 |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
Delta STO Function VFD4A2ME43ANSAA Technical specifications:
| Specification | Value |
|---|---|
| Series Name | ME300 |
| Input Voltage / Frequency | 460V, Three-phase AC, 380V~480V (-15% ~ + 10%), 50 / 60Hz |
| Applicable Motor Output ( kW) | 1.5 |
| Applicable Motor Output (HP) | 2 |
| Heavy Duty Rated Output Current (A) | 4.2 |
| Normal Duty Rated Output Current (A) | 4.6 |
| Cooling Method | Fan cooling |
| IP Level | IP20 |
| EMC Filter | None |
| Safe Torque Off (STO) | STO Model |
| Model Type | Standard model |
| Braking Chopper | Built-in |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
| MODBUS COM | Built-in |
| Control Methods | V/F, SVC |
| Size: W × H (mm) | 72 × 142 |
| Size: D (mm) | 127 |
| Net Weight | 0.9 |
The Delta STO Function VFD, model ME300, is designed for robust performance with an input voltage of 460V, three-phase AC, and offers a motor output of 1.5 kW (2 HP) and an output current of 4.2 A. Featuring fan cooling, a built-in braking chopper, and operating without an EMC filter, it's the standard model that supports both V/F and SVC control methods. With IP20 protection, this VFD ensures safety and reliability for a wide range of applications. IndMALL proudly offers the Delta ME300 series, highlighting its innovative Delta STO function, catering to diverse industrial needs with efficiency and precision.
