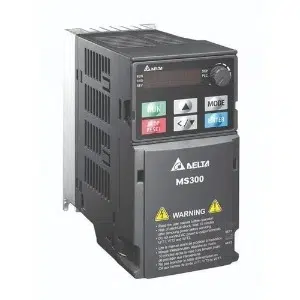

VFD4A2MS53ANSAA: Delta 575V 3-phase 3HP VFD
Technical Specifications of VFD4A2MS53ANSAA Delta 575V 3-phase 3HP VFD:
| Spec | Value |
|---|---|
| Series Name | MS300 |
| Input Voltage Frequency | 575V, Three-phase AC 500 V ~ 600 V (-15% ~ +10 %), 50/60 Hz |
| Applicable Motor Output ( kW) | 2.2 kW |
| Applicable Motor Output (HP) | 3 HP |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
Delta 575V 3-phase 3HP VFD4A2MS53ANSAA Technical Specifications:
| Specification | Value |
|---|---|
| Series Name | MS300 |
| Input Voltage / Frequency | 575V, Three-phase AC 500 V ~ 600 V (-15% ~ +10 %), 50/60 Hz |
| Applicable Motor Output ( kW) | 2.2 kW |
| Applicable Motor Output (HP) | 3 HP |
| Heavy Duty Rated Output Current (A) | 4.2 A |
| Normal Duty Rated Output Current (A) | 5 A |
| Cooling Method | Fan cooling |
| IP Level | IP20 |
| EMC Filter | None EMC Filter |
| Safe Torque Off (STO) | Integrated STO |
| Model Type | Standard Model |
| Braking Chopper | Built-in Braking Chopper |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
| MODBUS COM | - |
| Control Methods | V/F, SVC, FOC Sensorless |
| Size: W × H (mm) | 87×157 |
| Size: D (mm) | 152 |
| Net Weight | -- |
Send Your Inquiry for Delta 575V 3-phase 3HP VFD, VFD4A2MS53ANSAA with cost-effective solutions. Essential Technical Specs of VFD4A2MS53ANSAA cover Standard Model, Integrated STO, None EMC Filter & Built-in Braking Chopper. It also delivers 2.2 kW, 3 HP & 4.2 A. Capture the Best Deal with a Quote for your requirement of Delta 575V 3-phase 3HP VFD. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
