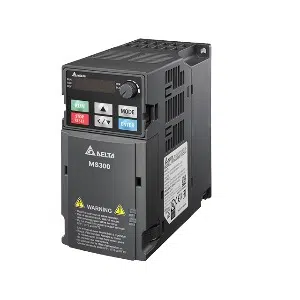

VFD4A8ME21AFSAA: Delta Built-in EMC Filter 0.75kW Drive
Technical Specifications of VFD4A8ME21AFSAA Delta Built-in EMC Filter 0.75kW Drive:
| Spec | Value |
|---|---|
| Series Name | ME300 |
| Input Voltage Frequency | 230V, Single-phase AC, 200V~240V (-15% ~ + 10%), 50 / 60Hz |
| Applicable Motor Output ( kW) | 0.75 |
| Applicable Motor Output (HP) | 1 |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
Delta Built-in EMC Filter 0.75kW Drive VFD4A8ME21AFSAA Technical specifications:
| Specification | Value |
|---|---|
| Series Name | ME300 |
| Input Voltage / Frequency | 230V, Single-phase AC, 200V~240V (-15% ~ + 10%), 50 / 60Hz |
| Applicable Motor Output ( kW) | 0.75 |
| Applicable Motor Output (HP) | 1 |
| Heavy Duty Rated Output Current (A) | 4.8 |
| Normal Duty Rated Output Current (A) | 5 |
| Cooling Method | Fan cooling |
| IP Level | IP20 |
| EMC Filter | Built-In |
| Safe Torque Off (STO) | STO Model |
| Model Type | Standard model |
| Braking Chopper | Built-in |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
| MODBUS COM | Built-in |
| Control Methods | V/F, SVC |
| Size: W × H (mm) | 87 x 157 |
| Size: D (mm) | 163 |
| Net Weight | 1 |
The Delta Built-in EMC Filter 0.75kW Drive, designated as the VFD4A8ME21AFSAA in the ME300 series, ensures optimal performance with a 230V single-phase AC input and a robust motor output of 1 HP (0.75 kW). It features advanced control methods including V/F and SVC, alongside a cooling method facilitated by fan cooling for efficient operation. IndMALL offers this standard model, equipped with an EMC filter and braking chopper built-in, ensuring superior protection with an IP20 rating.
