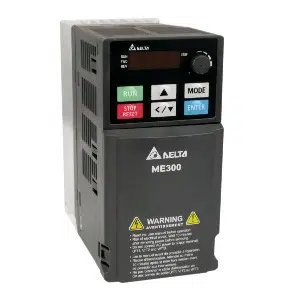

Delta VFD4A8ME21ANSAA: VFD for 1 HP Single Phase Motor
Technical Specifications of VFD4A8ME21ANSAA VFD for 1 HP Single Phase Motor:
| Spec | Value |
|---|---|
| Series Name | ME300 |
| Input Voltage Frequency | 230V, Single-phase AC, 200V~240V (-15% ~ + 10%), 50 / 60Hz |
| Applicable Motor Output ( kW) | 0.75 |
| Applicable Motor Output (HP) | 1 |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
VFD for 1 HP Single Phase Motor Delta VFD4A8ME21ANSAA Technical specifications:
| Specification | Value |
|---|---|
| Series Name | ME300 |
| Input Voltage / Frequency | 230V, Single-phase AC, 200V~240V (-15% ~ + 10%), 50 / 60Hz |
| Applicable Motor Output ( kW) | 0.75 |
| Applicable Motor Output (HP) | 1 |
| Heavy Duty Rated Output Current (A) | 4.8 |
| Normal Duty Rated Output Current (A) | 5 |
| Cooling Method | Natural air cooling |
| IP Level | IP20 |
| EMC Filter | None |
| Safe Torque Off (STO) | STO Model |
| Model Type | Standard model |
| Braking Chopper | Built-in |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
| MODBUS COM | Built-in |
| Control Methods | V/F, SVC |
| Size: W × H (mm) | 72 × 142 |
| Size: D (mm) | 127 |
| Net Weight | 0.9 |
The VFD for 1 HP Single Phase Motor, known as the Delta VFD4A8ME21ANSAA, is a standard model in the ME300 series, boasting a motor output of 1 HP and an output current of 4.8 A. Designed with natural air cooling and a built-in braking chopper, it ensures efficient operation without an EMC filter. IndMALL offers this versatile drive, which supports both V/F and SVC control methods, and comes with IP20 protection for various industrial applications.
