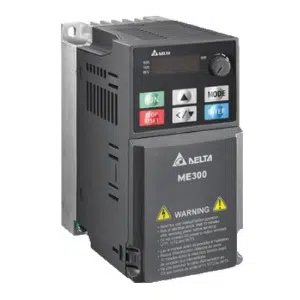

Delta VFD4A8ME23ANNAA: 1 HP VFD 3 Phase
Technical Specifications of VFD4A8ME23ANNAA 1 HP VFD 3 Phase:
| Spec | Value |
|---|---|
| Series Name | ME300 |
| Input Voltage Frequency | 230V, Three-phase AC, 200V~240V (-15% ~ + 10%), 50 / 60Hz |
| Applicable Motor Output ( kW) | 0.75 |
| Applicable Motor Output (HP) | 1 |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
1 HP VFD 3 Phase Delta VFD4A8ME23ANNAA Technical specifications:
| Specification | Value |
|---|---|
| Series Name | ME300 |
| Input Voltage / Frequency | 230V, Three-phase AC, 200V~240V (-15% ~ + 10%), 50 / 60Hz |
| Applicable Motor Output ( kW) | 0.75 |
| Applicable Motor Output (HP) | 1 |
| Heavy Duty Rated Output Current (A) | 4.8 |
| Normal Duty Rated Output Current (A) | 5 |
| Cooling Method | Natural air cooling |
| IP Level | IP20 |
| EMC Filter | None |
| Safe Torque Off (STO) | None |
| Model Type | Standard model |
| Braking Chopper | Built-in |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
| MODBUS COM | Built-in |
| Control Methods | V/F, SVC |
| Size: W × H (mm) | 68 × 128 |
| Size: D (mm) | 125 |
| Net Weight | 0.6 |
The Delta 1 HP VFD 3 Phase, part of the ME300 Series, features an input voltage of 230V with a three-phase AC supply, a motor output of 0.75 kW (1 HP), and an output current of 4.8 A, ensuring efficient performance with natural air cooling. This standard model, identified as VFD4A8ME23ANNAA, comes without an EMC filter, includes a built-in braking chopper, and supports both V/F and SVC control methods. IndMALL offers this Delta VFD, showcasing its commitment to providing high-quality industrial solutions.
