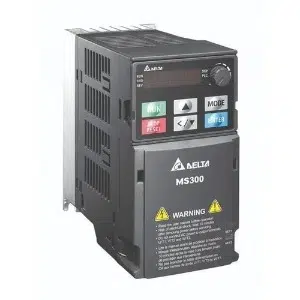

VFD4A8MS11ENSAA: Delta 1HP 0.75kW Motor Capacity
Technical Specifications of VFD4A8MS11ENSAA Delta 1HP 0.75kW Motor Capacity:
| Spec | Value |
|---|---|
| Series Name | MS300 |
| Input Voltage Frequency | 115V, Single-phase AC 100 V ~120 V (-15% ~ +10%), 50 / 60 Hz |
| Applicable Motor Output ( kW) | 0.75 kW |
| Applicable Motor Output (HP) | 1 HP |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
Delta 1HP 0.75kW Motor Capacity VFD4A8MS11ENSAA Technical Specifications:
| Specification | Value |
|---|---|
| Series Name | MS300 |
| Input Voltage / Frequency | 115V, Single-phase AC 100 V ~120 V (-15% ~ +10%), 50 / 60 Hz |
| Applicable Motor Output ( kW) | 0.75 kW |
| Applicable Motor Output (HP) | 1 HP |
| Heavy Duty Rated Output Current (A) | 4.8 A |
| Normal Duty Rated Output Current (A) | 5.5 A |
| Cooling Method | Fan cooling |
| IP Level | IP40 (Anti-dust) |
| EMC Filter | None EMC Filter |
| Safe Torque Off (STO) | Integrated STO |
| Model Type | Standard Model |
| Braking Chopper | Built-in Braking Chopper |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
| MODBUS COM | - |
| Control Methods | V/F, SVC, FOC Sensorless |
| Size: W × H (mm) | 87×157 |
| Size: D (mm) | 152 |
| Net Weight | -- |
Reach Us by Email for Delta 1HP 0.75kW Motor Capacity, VFD4A8MS11ENSAA at Discounted Rates. Key Technical Features of VFD4A8MS11ENSAA are Standard Model, Integrated STO, None EMC Filter & Built-in Braking Chopper. Additionally, it provides 0.75 kW, 1 HP & 4.8 A. Navigate Your Needs with a Quote for your requirement of Delta 1HP 0.75kW Motor Capacity. Our pricing and support are unrivaled, especially when compared to other Competitors.
