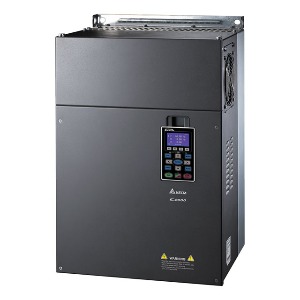

VFD550C43A: Delta 75HP VFD
Technical Specifications of Delta 75HP VFD VFD550C43A:
| Spec | Value |
|---|---|
| Input Voltage / Frequency | 3 - phase AC 380V ~ 480V (-15%~+10% ), 50/60Hz |
| Output Capacity (kVA) Normal Duty | 88 kVA |
| Output Current (A) Normal Duty | 110 A |
| Applicable Motor Output (kW) Normal Duty | 55 kW |
| Applicable Motor Output (HP) Normal Duty | 75 HP |
Delta 75HP VFD VFD550C43A Technical Specifications:
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 3 - phase AC 380V ~ 480V (-15%~+10% ), 50/60Hz |
| Output Capacity (kVA) Normal Duty | 88 kVA |
| Output Current (A) Normal Duty | 110 A |
| Applicable Motor Output (kW) Normal Duty | 55 kW |
| Applicable Motor Output (HP) Normal Duty | 75 HP |
| Cooling Method | Fan cooling |
| Efficiency (%) | 97.8 |
| IP Level | IP20 |
| NEMA Protection Level | No NEMA Protection Level |
| Storage/Transportation Temperature | -25 ~ 70 |
| Braking Chopper | Optional Braking Chopper |
| Control Method | Pulse Width Modulated (PWM) |
| Installation Type | Wall mount |
| V/F Curve | 4-point adjustable V/F curve and square curve |
| Input Frequency Tolerance | 47 ~ 63Hz |
| Voltage Tolerance | 323 ~ 528 VAC |
| Drive Weight (Kg) | 38.5±1.5 kg |
Give Us a Call for Delta 75HP VFD, VFD550C43A at the lowest pricing. In-depth Technical Analysis of VFD550C43A includes No NEMA Protection Level, Optional Braking Chopper, Pulse Width Modulated (PWM) & Wall mount. It functionality Includes 88 kVA, 110 A & 55 kW. Elevate Your Project with a Quote for your requirement of Delta 75HP VFD. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
