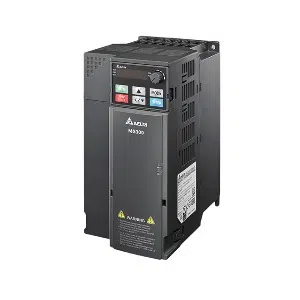

VFD5A5MS43ENSHA: Delta 460V 3-Phase 5.5kW Frequency Drive
Technical Specifications of VFD5A5MS43ENSHA Delta 460V 3-Phase 5.5kW Frequency Drive:
| Spec | Value |
|---|---|
| Series Name | MS300 |
| Input Voltage Frequency | 460V, Three-phase AC 380 V ~480 V，50 / 60 Hz |
| Applicable Motor Output ( kW) | 2.2 kW |
| Applicable Motor Output (HP) | 3 HP |
| Output Frequency | 0.00 ~ 1500.0Hz (±0.1%) |
Delta 460V 3-Phase 5.5kW Frequency Drive VFD5A5MS43ENSHA Technical Specifications:
| Specification | Value |
|---|---|
| Series Name | MS300 |
| Input Voltage / Frequency | 460V, Three-phase AC 380 V ~480 V，50 / 60 Hz |
| Applicable Motor Output ( kW) | 2.2 kW |
| Applicable Motor Output (HP) | 3 HP |
| Heavy Duty Rated Output Current (A) | 5.5 A |
| Normal Duty Rated Output Current (A) | 6.5 A |
| Cooling Method | Natural air cooling |
| IP Level | IP40 (Anti-dust) |
| EMC Filter | None EMC Filter |
| Safe Torque Off (STO) | Integrated STO |
| Model Type | High Speed Model |
| Braking Chopper | Built-in Braking Chopper |
| Output Frequency | 0.00 ~ 1500.0Hz (±0.1%) |
| MODBUS COM | - |
| Control Methods | V/F, SVC, FOC Sensorless |
| Size: W × H (mm) | 87×157 |
| Size: D (mm) | 143 |
| Net Weight | 3.8 kg |
Please speak to our Technical Engineer for Delta 460V 3-Phase 5.5kW Frequency Drive, VFD5A5MS43ENSHA at attractive prices. Technical Specs Summary of VFD5A5MS43ENSHA includes High Speed Model, Integrated STO, None EMC Filter & Built-in Braking Chopper. And Special Features Are 2.2 kW, 3 HP & 5.5 A. Match Your Needs with a Quote for your requirement of Delta 460V 3-Phase 5.5kW Frequency Drive. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
