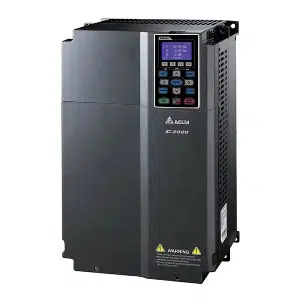

VFD6300C63B-00: Delta 6300kW Ultimate Industrial
Technical Specifications of Delta 6300kW Ultimate Industrial VFD6300C63B-00:
| Spec | Value |
|---|---|
| Input Voltage / Frequency | 3-Phase 525VAC ~ 690VAC ( -15% ~ +10%), 50 / 60Hz |
| Output Capacity (kVA) Normal Duty | 776 kVA |
| Output Current (A) Normal Duty | 675 A |
| Applicable Motor Output (kW) Normal Duty | 630 kW |
| Applicable Motor Output (HP) Normal Duty | 850 HP |
Delta 6300kW Ultimate Industrial VFD6300C63B-00 Technical Specifications:
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 3-Phase 525VAC ~ 690VAC ( -15% ~ +10%), 50 / 60Hz |
| Output Capacity (kVA) Normal Duty | 776 kVA |
| Output Current (A) Normal Duty | 675 A |
| Applicable Motor Output (kW) Normal Duty | 630 kW |
| Applicable Motor Output (HP) Normal Duty | 850 HP |
| Cooling Method | Fan Cooling |
| Efficiency (%) | 98 |
| IP Level | IP00 |
| NEMA Protection Level | UL Open Type |
| Storage/Transportation Temperature | -25 ~ 70 |
| Braking Chopper | Optional Braking Chopper |
| Control Method | Pulse Width Modulated (PWM) |
| Installation Type | Wall mount with 690V rated current |
| V/F Curve | 4-point adjustable V/F curve and square curve |
| Input Frequency Tolerance | 47 ~ 63Hz |
| Voltage Tolerance | 446 ~ 759VAC |
| Drive Weight (Kg) | 243±5 kg |
IndMALL Offers Delta 6300kW Ultimate Industrial, VFD6300C63B-00 at economical Choices. Product Tech Specs of VFD6300C63B-00 includes UL Open Type, Optional Braking Chopper, Pulse Width Modulated (PWM) & Wall mount with 690V rated current. And It Includes 630 kW, 776 kVA & 675 A. Now's the Time to Secure a Quote for your requirement of Delta 6300kW Ultimate Industrial. Trust in our superior pricing and more dedicated support over other Distributors.
