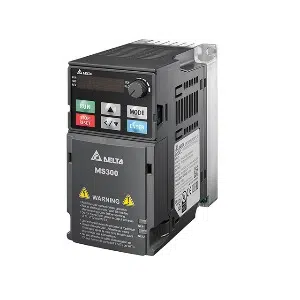

VFD65AMS23ANSHA: Delta 230V 3-phase 15kW VFD
Technical Specifications of VFD65AMS23ANSHA Delta 230V 3-phase 15kW VFD:
| Spec | Value |
|---|---|
| Series Name | MS300 |
| Input Voltage Frequency | 230V, Three-phase AC 200 V ~240 V，50 / 60 Hz |
| Applicable Motor Output ( kW) | 15 kW |
| Applicable Motor Output (HP) | 20 HP |
| Output Frequency | 0.00 ~ 1500.0Hz (±0.1%) |
Delta 230V 3-phase 15kW VFD65AMS23ANSHA Technical Specifications:
| Specification | Value |
|---|---|
| Series Name | MS300 |
| Input Voltage / Frequency | 230V, Three-phase AC 200 V ~240 V，50 / 60 Hz |
| Applicable Motor Output ( kW) | 15 kW |
| Applicable Motor Output (HP) | 20 HP |
| Heavy Duty Rated Output Current (A) | 65 A |
| Normal Duty Rated Output Current (A) | 69 A |
| Cooling Method | Fan cooling |
| IP Level | IP20 |
| EMC Filter | None EMC Filter |
| Safe Torque Off (STO) | Integrated STO |
| Model Type | High Speed Model |
| Braking Chopper | Built-in Braking Chopper |
| Output Frequency | 0.00 ~ 1500.0Hz (±0.1%) |
| MODBUS COM | - |
| Control Methods | V/F, SVC, FOC Sensorless |
| Size: W × H (mm) | 175×300 |
| Size: D (mm) | 192 |
| Net Weight | -- |
Give Us a Call for Delta 230V 3-phase 15kW VFD, VFD65AMS23ANSHA at the lowest pricing. In-depth Technical Analysis of VFD65AMS23ANSHA includes High Speed Model, Integrated STO, None EMC Filter & Built-in Braking Chopper. It functionality Includes 15 kW, 20 HP & 65 A. Elevate Your Project with a Quote for your requirement of Delta 230V 3-phase 15kW VFD. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
