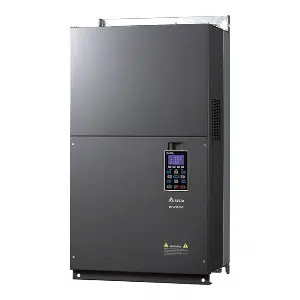

VFD750C23A: Delta 75kW Compact Power Solution
Technical Specifications of Delta 75kW Compact Power Solution VFD750C23A:
| Spec | Value |
|---|---|
| Input Voltage / Frequency | 3-phase AC 200V ~ 240V (-15%~+10%), 50/60Hz |
| Output Capacity (kVA) Normal Duty | 102 kVA |
| Output Current (A) Normal Duty | 255 A |
| Applicable Motor Output (kW) Normal Duty | 75 kW |
| Applicable Motor Output (HP) Normal Duty | 100 HP |
Delta 75kW Compact Power Solution VFD750C23A Technical Specifications:
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 3-phase AC 200V ~ 240V (-15%~+10%), 50/60Hz |
| Output Capacity (kVA) Normal Duty | 102 kVA |
| Output Current (A) Normal Duty | 255 A |
| Applicable Motor Output (kW) Normal Duty | 75 kW |
| Applicable Motor Output (HP) Normal Duty | 100 HP |
| Cooling Method | Fan Cooling |
| Efficiency (%) | 98.2 |
| IP Level | IP20 |
| NEMA Protection Level | No NEMA Protection Level |
| Storage/Transportation Temperature | -25 ~ 70 |
| Braking Chopper | Optional Braking Chopper |
| Control Method | Pulse Width Modulated (PWM) |
| Installation Type | Wall mount |
| V/F Curve | 4-point adjustable V/F curve and square curve |
| Input Frequency Tolerance | 47 ~ 63Hz |
| Voltage Tolerance | 170 ~ 264Vac |
| Drive Weight (Kg) | 64.8 ± 1.5 kg |
Mail Us for your needs in Delta 75kW Compact Power Solution, VFD750C23A with budget-friendly prices. The Main Technical Parameters of VFD750C23A include No NEMA Protection Level, Optional Braking Chopper, Pulse Width Modulated (PWM) & Wall mount. Additionally, it provides 102 kVA, 255 A & 75 kW. Customize Your Experience with a Quote for your requirement of Delta 75kW Compact Power Solution. Experience the difference with our competitive pricing and superior support over other Suppliers.
