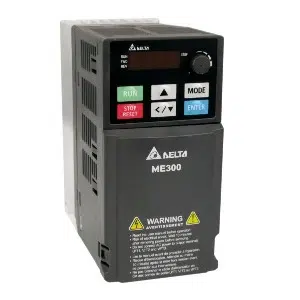

VFD7A5ME23ANNAA: Delta 7.5A VFD
Technical Specifications of VFD7A5ME23ANNAA Delta 7.5A VFD:
| Spec | Value |
|---|---|
| Series Name | ME300 |
| Input Voltage Frequency | 230V, Three-phase AC, 200V~240V (-15% ~ + 10%), 50 / 60Hz |
| Applicable Motor Output ( kW) | 1.5 |
| Applicable Motor Output (HP) | 2 |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
Delta 7.5A VFD7A5ME23ANNAA Technical specifications:
| Specification | Value |
|---|---|
| Series Name | ME300 |
| Input Voltage / Frequency | 230V, Three-phase AC, 200V~240V (-15% ~ + 10%), 50 / 60Hz |
| Applicable Motor Output ( kW) | 1.5 |
| Applicable Motor Output (HP) | 2 |
| Heavy Duty Rated Output Current (A) | 7.5 |
| Normal Duty Rated Output Current (A) | 8 |
| Cooling Method | Fan cooling |
| IP Level | IP20 |
| EMC Filter | None |
| Safe Torque Off (STO) | None |
| Model Type | Standard model |
| Braking Chopper | Built-in |
| Output Frequency | 0.00 ~ 599.00 Hz (±0.1%) |
| MODBUS COM | Built-in |
| Control Methods | V/F, SVC |
| Size: W × H (mm) | 72 × 142 |
| Size: D (mm) | 127 |
| Net Weight | 0.8 |
The Delta 7.5A VFD, model VFD7A5ME23ANNAA, features a 230V three-phase AC input, a motor output of 1.5 kW (2 HP), and an output current of 7.5 A. This standard model includes fan cooling, a built-in braking chopper, but lacks an EMC filter. It supports V/F and SVC control methods. IndMALL offers this Delta 7.5A VFD for advanced motor management solutions.
